Product Description:
Technical data of 4*4 molds paper egg tray machine
|
Egg Tray mould quantity
|
16pcs (4*4)
|
|
Raw material
|
Waste paper
|
|
Output for egg tray
|
2500-3000pcs/h
|
|
Net weight per piece
|
70g-75g
|
|
Waste paper consumption
|
225kg/h
|
|
Water consumption
|
0.68t/h
|
|
Natural gas consumption
|
60cbm/h in summer
|
|
Workshop dimension
|
>30M*W10M*H5M
|
|
Installed Power
|
114kw around
|
|
Motor efficiency
|
70% of installed power 114kw
|
|
Machine Weight
|
20 tons around
|
|
Egg tray Size
|
295mm*295mm 30eggs
|

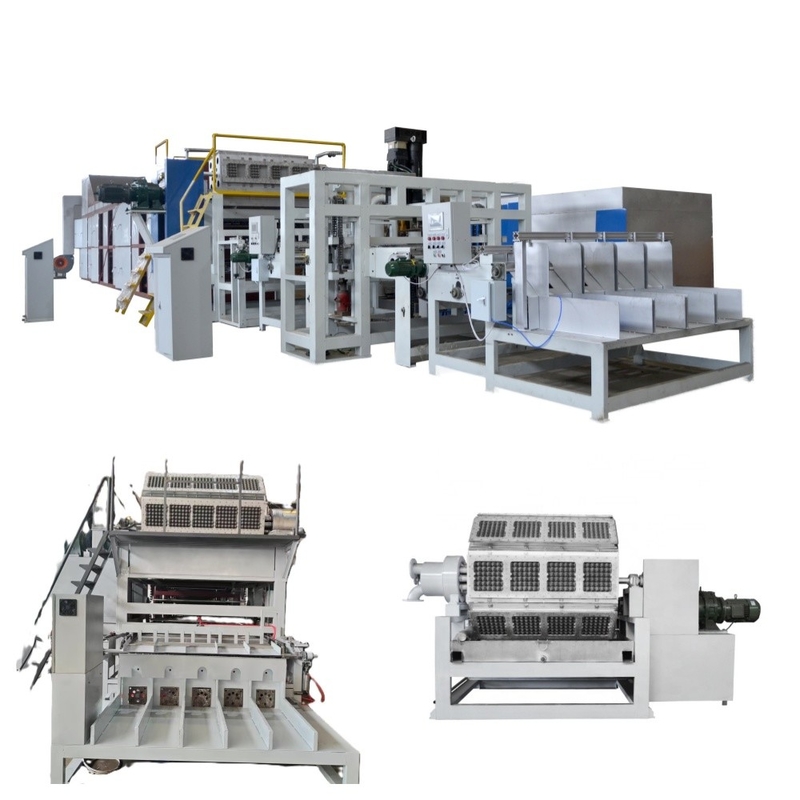

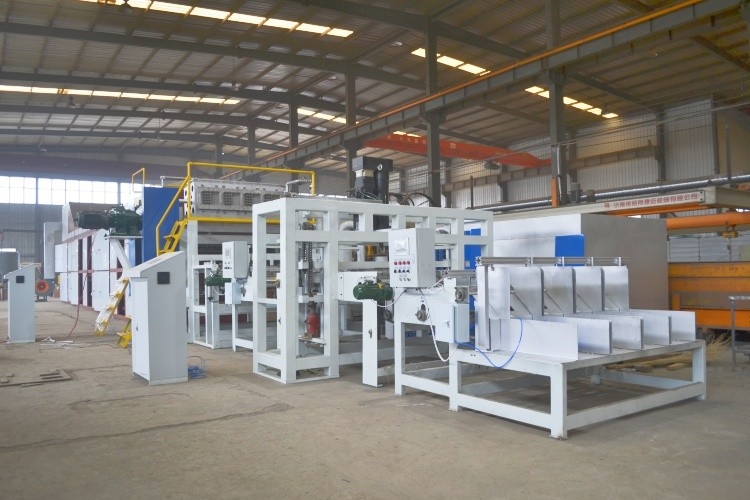

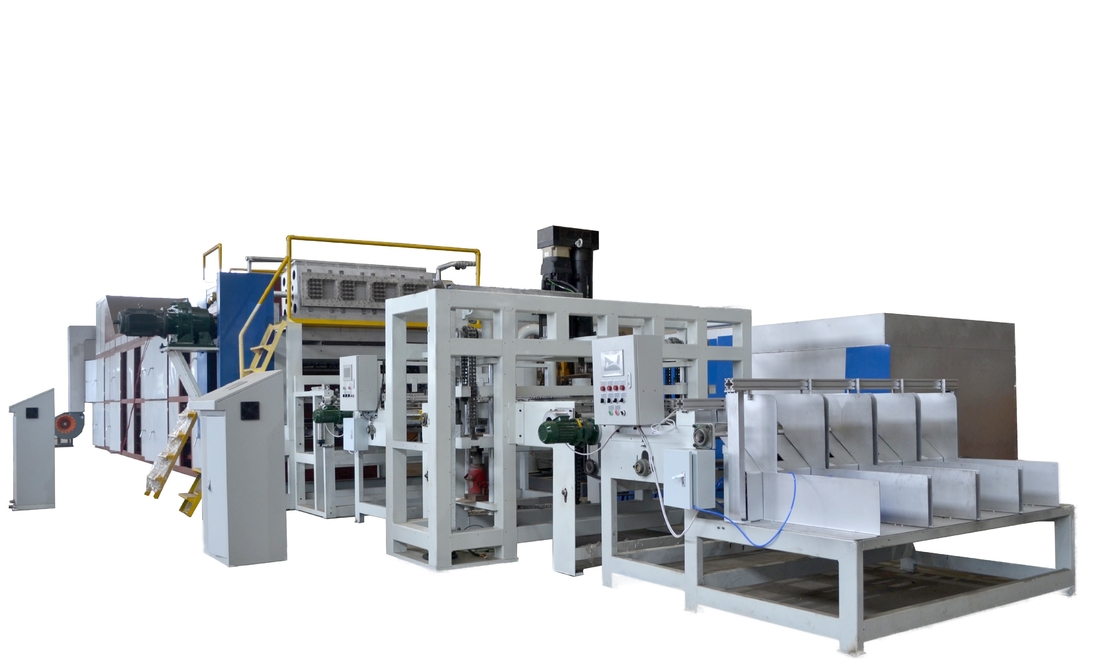

4*4 molds rotary forming type egg carton production line whole view

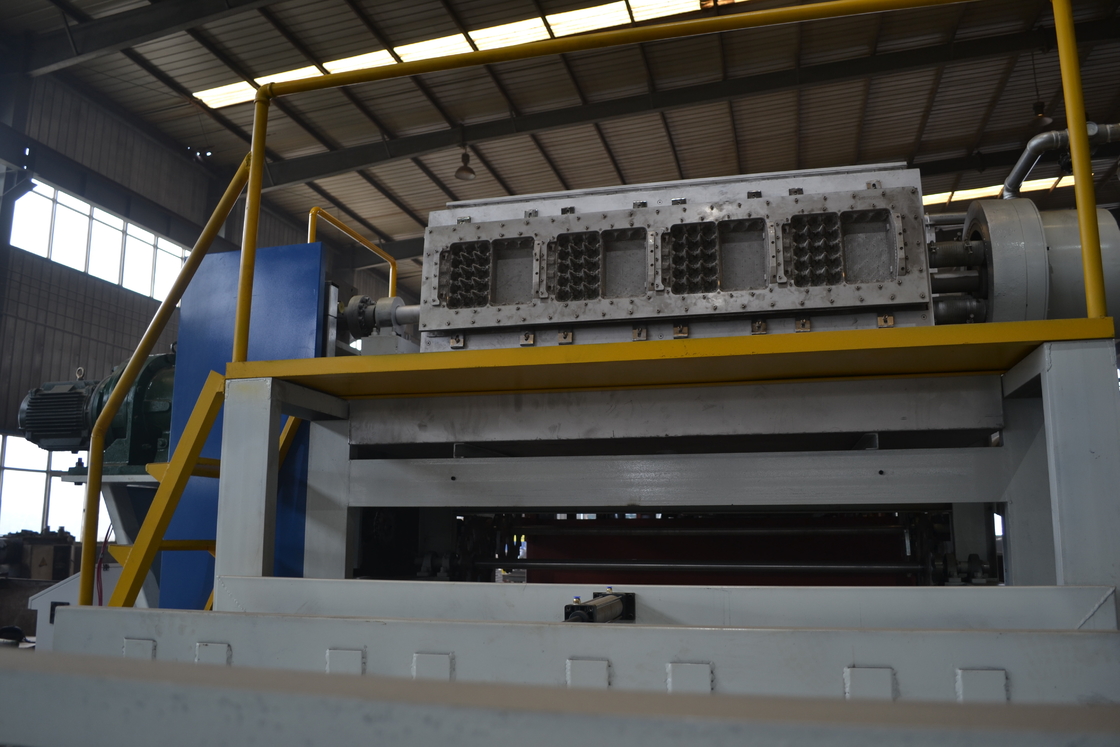

Forming system of 4*4 molds paper egg carton production line for 15 seats egg carton

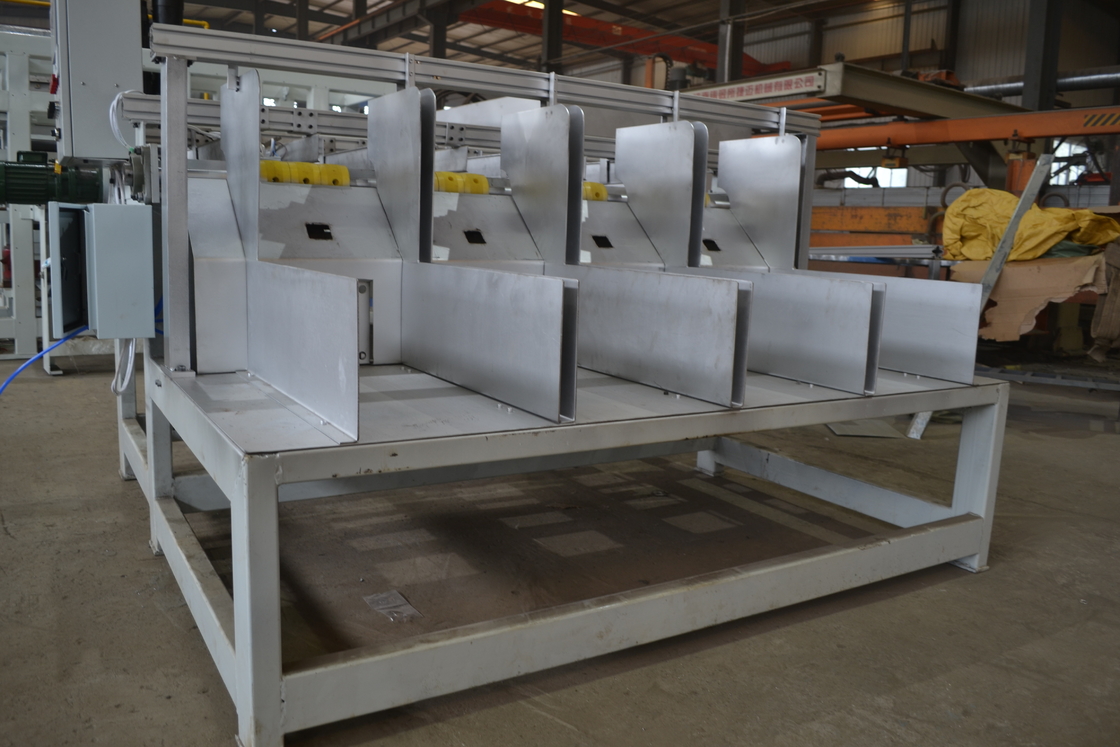

Auto stacker for paper egg carton production line 4*4 molds. 2500-3000pcs/h capacity
Water pulp pools for 4*4 molds paper egg carton production line(this part is selectable as per customer's needs)

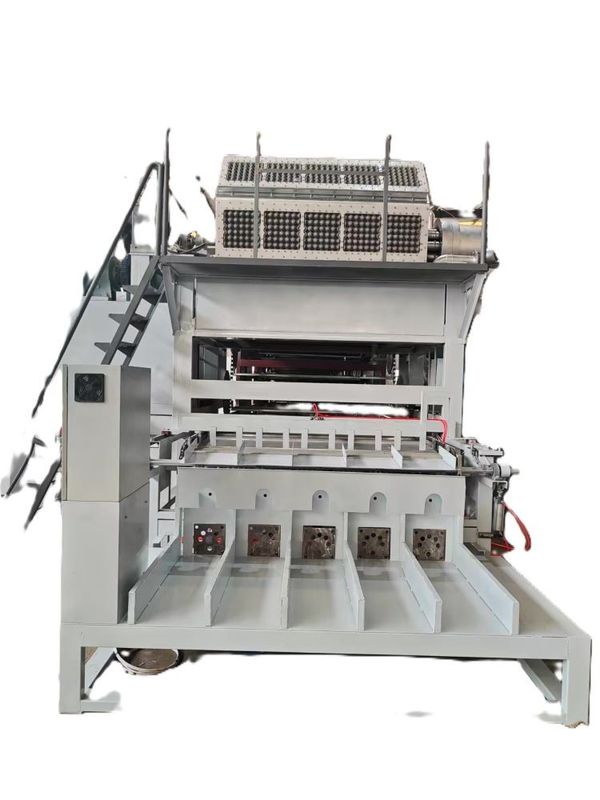

4*4 molds paper egg tray machine (only forming part)
Hydraulic pulper for 4*4 molds paper egg tray machine/egg carton production line
The Egg Tray Production Line's key features include the use of waste paper pulp, cardboard, books, and A4 papers as raw materials, making it an eco-friendly option for egg tray production.
The machine uses hot air drying technology, which is energy-efficient and ensures the trays are thoroughly dried before packaging.
The Egg Tray Forming Machine is the key component of the Egg Tray Production Line.

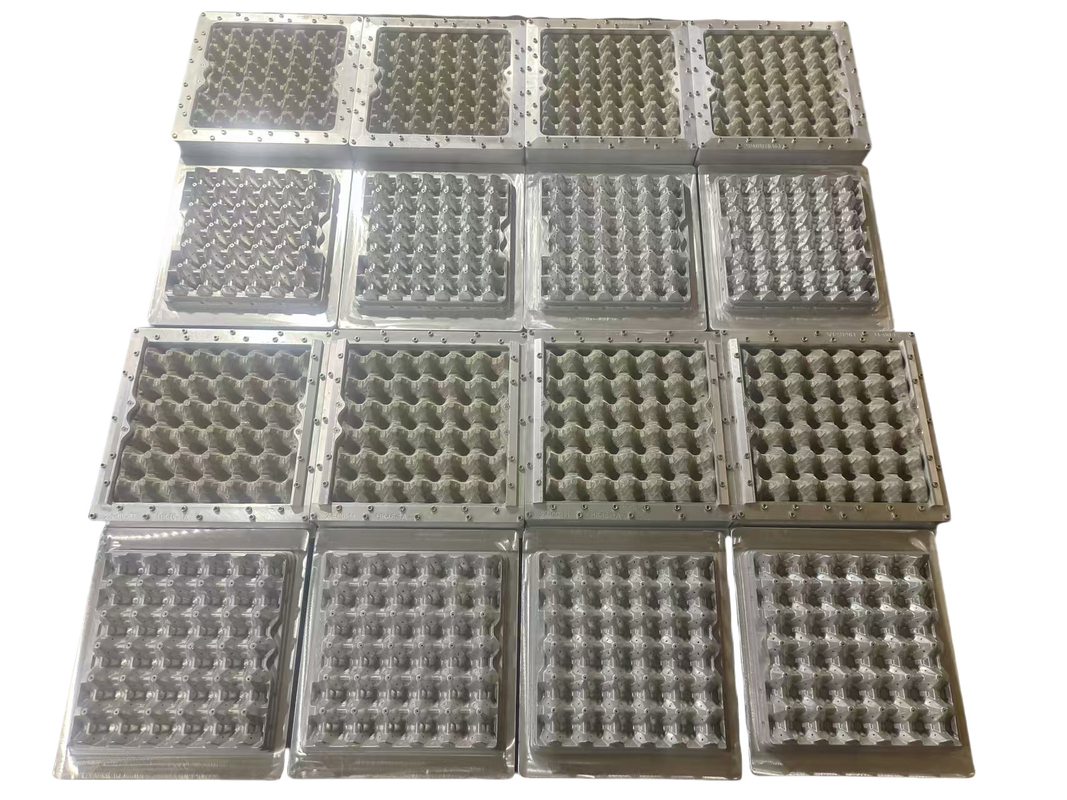

It comes with both aluminum and ABS plastic molds, allowing for both reciprocating and rotary forming.
This flexibility in forming types makes it possible to produce a wide range of egg tray designs, including 6-cell, 12-cell, and 30-cell trays, among others.
The aluminum molds are durable, corrosion-resistant, and easy to clean, while the ABS plastic molds are lightweight and cost-effective.
The egg tray production line is easy to operate, with a user-friendly interface that makes it easy for operators to control the machine's functions.
The machine's high efficiency ensures that large quantities of egg trays can be produced within a short time, improving productivity and reducing labor costs.
The Egg Tray Production Line is designed to meet the highest quality standards, with all components made of high-quality materials to ensure durability and reliability.
The machine's compact design makes it easy to install and maintain, requiring minimal space.
Its automated production process reduces the risk of errors and minimizes waste, making it a cost-effective option for egg packaging businesses.
Overall, the Egg Tray Production Line is an excellent investment for businesses looking to produce high-quality egg trays, egg cartons, and molded pulp trays.
Its eco-friendly design, energy-efficient hot air drying technology, and flexible forming types make it a versatile and efficient option for egg packaging businesses.
With its high quality, durability, and reliability, the Egg Tray Production Line is sure to meet all your egg tray production needs.
Applications:
The Egg Tray Production Line is equipped with a powerful motor that has a total power of 45KW-200kw.
The product size of the trays: 295*295mm.
The working speed: 6 seconds per tray,
The machine weight: 5-15T
The Egg Tray Production Line is ideal for Egg Tray Manufacturing Plants in high demand for paper trays.
The product is also suitable for use in industrial packaging, such as the food industry, the shoe industry, and the electronics industry.
The machine can produce a variety of trays, making it versatile and useful for a wide range of applications.
The WANYOU Egg Tray Production Line is an excellent investment for businesses that require reliable and efficient tray production equipment.
The product is easy to use, and the supply ability is 1 set per month.
The payment terms for the product are TT, which makes it easy for businesses to purchase the equipment.
The product is designed to be user-friendly, and it requires minimal maintenance, making it an ideal choice for businesses that require high-quality trays at an affordable price.
Technical data of 4*8 molds 4000pcs/h capacity rotary forming type paper egg trays machine molded pulp machine
| Egg Tray Mold Quantity |
32pcs(4*8) |
| Raw material |
Waste paper |
| Egg tray Capacity |
3000-4000pcs/hour |
| Net weight per piece (gram) |
70g-75g |
| Waste paper consumption |
225kg / hour |
| Water Consumption |
0.6ton / hour |
| Natural Gas Consumption of Dryer |
80cbm/h |
| Worker requirement |
8-10workers |
| Power Requirement |
Without dryer |
100KW |
| With dryer |
150KW |
| Area of workshop |
Without dryer |
More than 250 M² |
| With dryer |
More than 520M² |
| Container Requirement |
Without dryer |
40ft*1 |
| With dryer |
40ft*5 |
Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant.
3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time.
4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer.
5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
|
Support and Services:
The Egg Tray Production Line is a highly advanced and efficient system for the automated production of egg trays.
Our technical support and services are designed to ensure that your production line operates at maximum efficiency with minimal downtime.
Our team of experienced technicians is available to provide assistance with installation, training, maintenance, and repairs.
We also offer customized solutions to meet your specific production needs, including equipment upgrades and modifications.
Our goal is to provide you with reliable and effective support so that you can focus on producing high-quality egg trays for your customers.
Packing and Shipping:
The Egg Tray Production Line will be packed in a sturdy wooden crate with protective measures to prevent any damage during transportation.
Shipping:
The Egg Tray Production Line will be shipped via sea or air, depending on the customer's preference and urgency.
We will arrange for a reliable and experienced shipping company to handle the transportation process and ensure timely delivery to the customer's designated location.
FAQ:
Q: What is the brand name of the Egg Tray Production Line?
A: The brand name of the Egg Tray Production Line is WANYOU.
Q: What is the model number of the Egg Tray Production Line?
A: The model number of the Egg Tray Production Line is WY-1.
Q: Where is the Egg Tray Production Line manufactured?
A: The Egg Tray Production Line is manufactured in Jinan, Shandong.
Q: What is the minimum order quantity for the Egg Tray Production Line?
A: The minimum order quantity for the Egg Tray Production Line is 1 set.
Q: What is the price range for the Egg Tray Production Line?
A: The price range for the Egg Tray Production Line is between 8000usd-9800$.
Q: What are the packaging details for the Egg Tray Production Line?
A: The packaging details for the Egg Tray Production Line are plastic films.
Q: What is the delivery time for the Egg Tray Production Line?
A: The delivery time for the Egg Tray Production Line depends on the order quantity and other factors.
Q: What are the payment terms for the Egg Tray Production Line?
A: The payment terms for the Egg Tray Production Line are TT (Telegraphic Transfer).
Q: What is the supply ability for the Egg Tray Production Line?
A: The supply ability for the Egg Tray Production Line is 1 set per month.
