Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Model Number:
ZSJ series

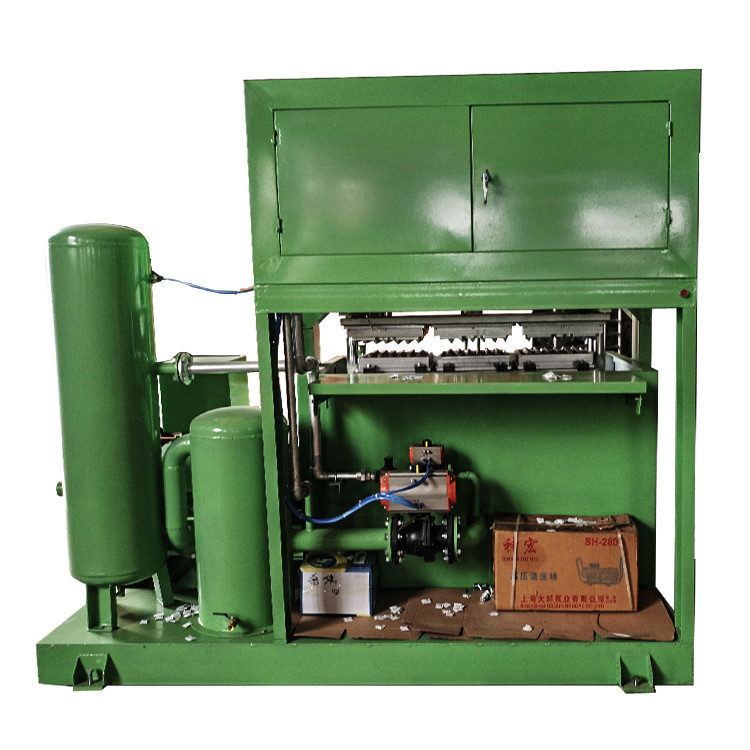

Egg Tray Production Line with Paper Pulp Material and Automatic Pulp Molding Machine for Sustainable and Egg Tray Making Machine
Advantages of egg tray production line:
1. with computer software
2. 1-year warranty
3. fast delivery
4. Germany-made parts

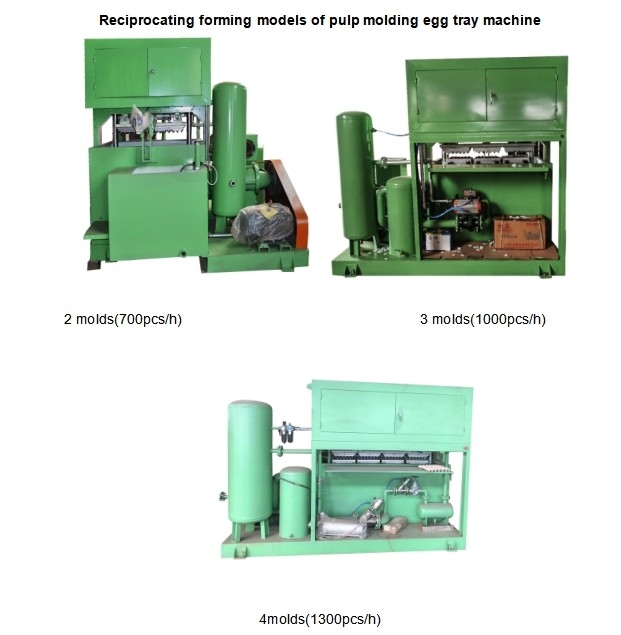

Models of egg tray machine / production line:
|
2pcs |
3pcs |
4pcs |
12pcs(3pcs*4) |
16pcs(4pcs*4) |
24pcs(3pcs*8) |
32pcs(4pcs*8) |
||
|
Raw material |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
|
|
Egg tray Capacity(pcs/hour) |
700 |
1000 |
1300 |
2000 |
2500 |
3000 |
4000 |
|
|
Net weight per piece (gram) |
70-75 |
70-75 |
70-75 |
70-75 |
70-75 |
70-75 |
70-75 |
|
|
Waste paper consumption |
0.06ton / h |
0.1ton / h |
0.13ton / h |
150kg/ h |
150kg/h |
188kg/h |
225kg / hour |
|
|
Water Consumption |
0.15ton/h |
0.22ton / h |
0.3ton / h |
0.45ton / h |
0.6ton/h |
0.68ton/h |
0.9ton / h |
|
|
Natural Gas Consumption of Dryer |
25cbm/h |
45cbm/h |
60cbm/h |
75cbm/h |
90cbm/h |
110cbm/h |
120cbm/h |
|
|
Boiler model (natural gas fuel Kcal) |
300*103 |
450* |
600*103 |
800*103 |
1000*103 |
1200*103 |
1500*103 |
|
|
Worker requirement |
3-4workers |
4-6workers |
4-6workers |
5-7workers |
5-7workers |
8-10workers |
8-10workers |
|
|
Power Requirement |
Without dryer |
30KW |
40KW |
45KW |
70KW |
80KW |
100KW |
100KW |
|
With dryer |
45KW |
60KW |
65KW |
100KW |
120KW |
130KW |
150KW |
|
|
Area of workshop |
Without dryer |
More than 100 M² |
More than 120 M² |
More than 150 M² |
More than |
More than 200 M² |
More than 250 M² |
More than 250 M² |
|
With dryer |
More than 240M² |
More than300M² |
More than 320 M² |
More than 400M² |
More than 400M² |
More than 520M² dryer30M |
More than 520M² |
|
|
Container Requirement |
Without dryer |
20ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
|
With dryer |
40ft*2+20ft*1 |
40ft*3 |
40ft*3 |
40ft*4 |
40ft*4 |
40ft*5 |
40ft*5 |
|
|
Remarks: |
||||||||
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production.
The egg tray machine production line is mainly combined by THREE PARTS:
1. Pulping system
(meaning: Use waste paper and water as raw material and pulp up) ;
2. Forming system
(meaning: The pulped material being delivered to Egg tray moulds, and forming to the Egg tray plate shape) ;
3. Drying system
(Meaning : The formed Egg tray plate being delivered to Dryer, and come up to Completed Strong Egg tray plate) .
The drying system is with one boiler. The drying system can use electricity, or diesel, or coal, or natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
