Place of Origin:
Jinan, Shandong, China
Brand Name:
RUNLIANG
Certification:
CE
Model Number:
Zxj
Video
Video
Video

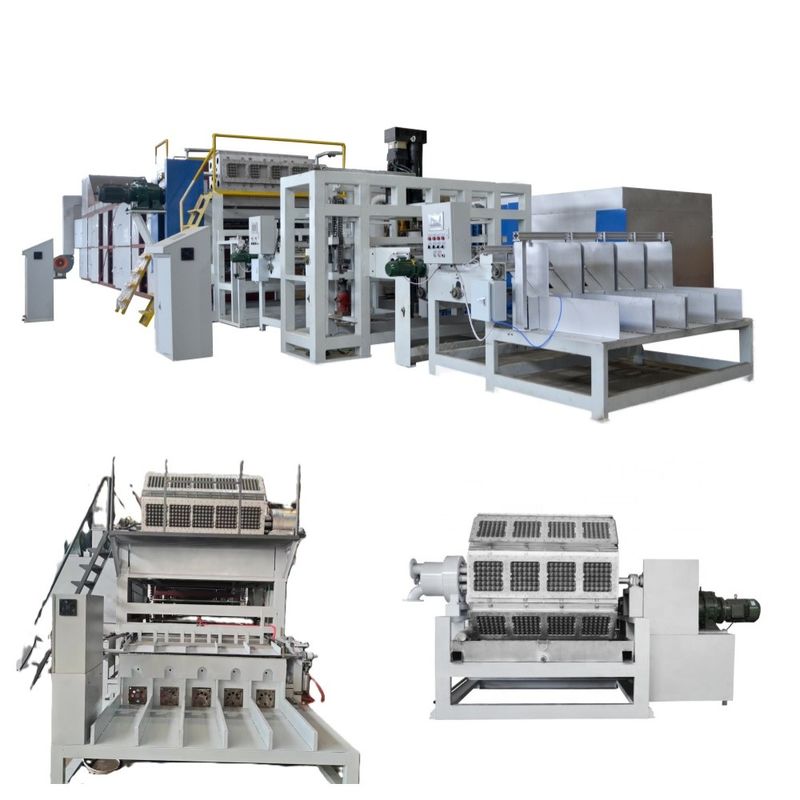

Automatic pulp molding large capacity paper egg tray making forming machine
Egg Tray Machine (pulp molding machine) uses waste paper as raw material and produce different kinds of products according to your requirement,such as egg tray/dishes ,egg carto/box,fruit tray,industrial package tray,seeding tray ,win tray ,shoe support and small products packages ,etc. The different final products are decided by your market choice.
Details of egg tray forming machine:
| Technical Parameters | ||
| Egg Tray mould quantity48 | pcs | Container Required |
| Raw material | Waste paper |
About 40ft*7 (without dryer) |
| Output for egg tray | 6000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| The volume of waste paper consumed | 450kg / hour | |
| The volume of water consumed | 1.35ton / hour | |
|
The natural gas consumped of the dryer(about)
|
180cbm/h
|
|
| Diesel Consumption | ||
| Machine Weight | 5-20tons | |
| Egg tray Size | 295mm*295mm 30eggs | |
Four parts of egg tray forming machine:
| Name | Function | |
|
Pulping system
|
Pulping system Including : mill pulp pump -1set water pump-2sets pulp pump -2sets pulping machine –1sets |
material of tank and disc:carbonized steel ,material of screen plate:stainless steel , pulping consistency:3-4%.
|
|

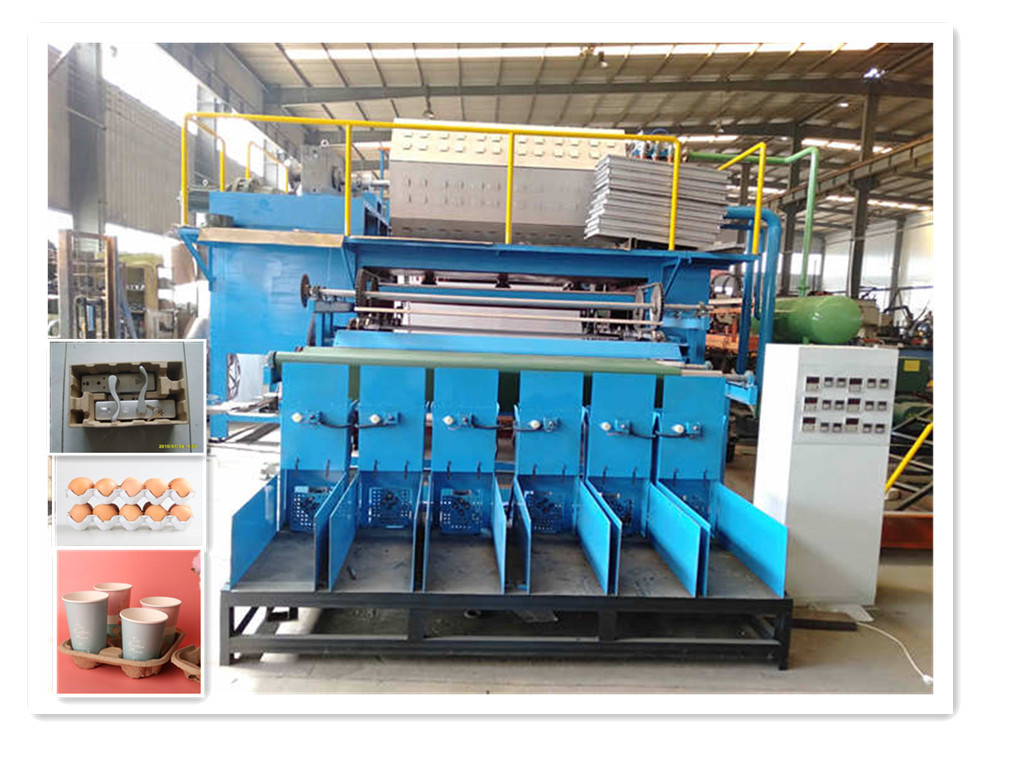

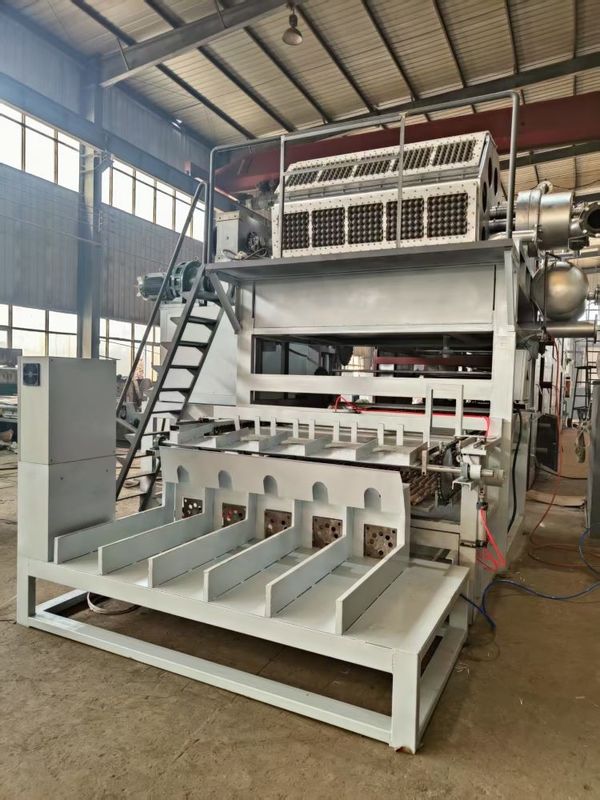

Forming system
|
Including 48 moulds (6*8)forming machine -1set Vacuum pump-1set Compressor -2sets Washer –1set Vacuum tank-1pcs Air tank—1pcs |
Equipped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
|
|

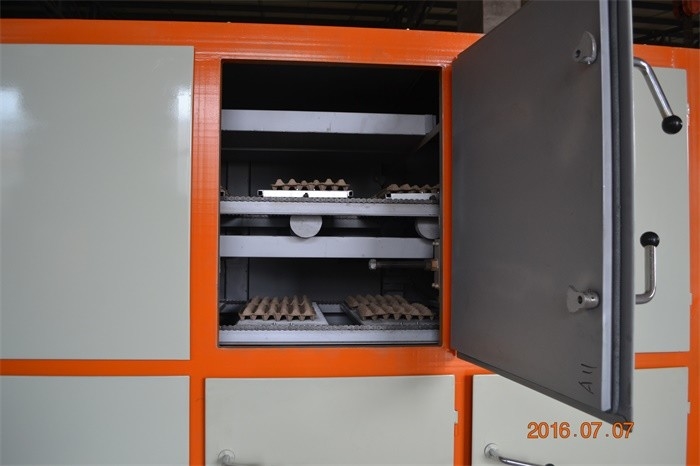

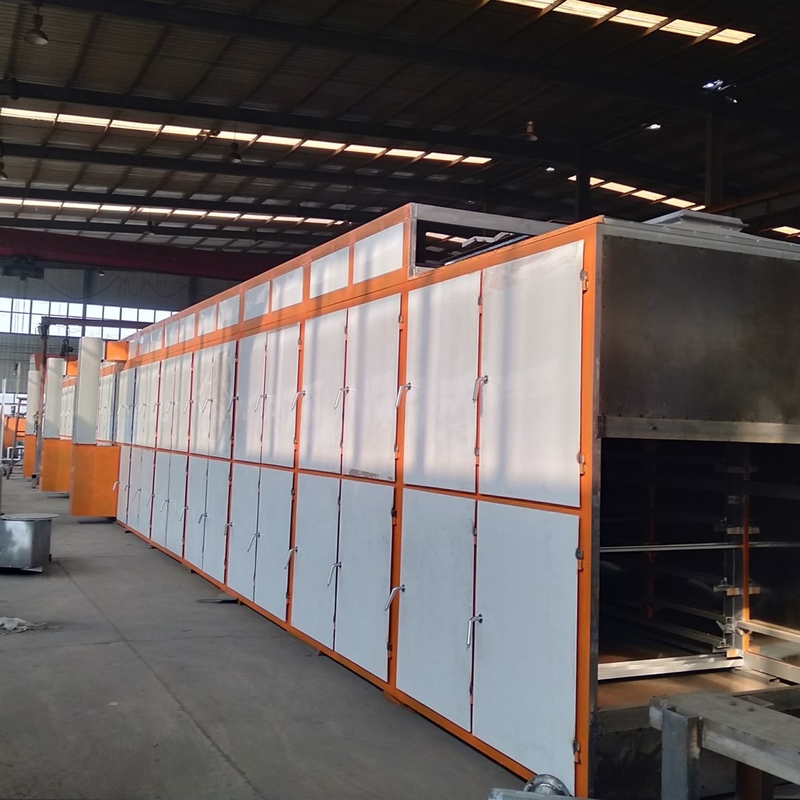

Drying system
|
Including Drying oven –1set (L 40M*2.8M*H2.2M) Chain and tray –1sets Hot air pipe –1sets Chain wheel with shaft—1sets Drive motor –1set |
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equipped with auto control cabinet.
|
|

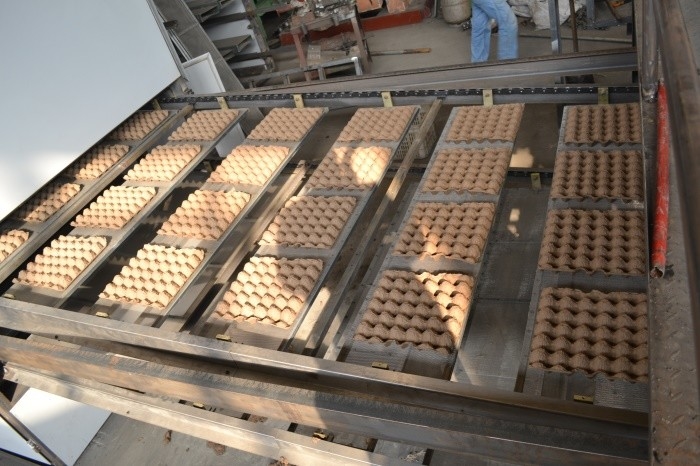

Stacking system
|
Including Stacker-1set Height limit pressor-1set |
Used to stack the after-drying products. |
Machine Features of Paper Egg Tray Making Production Line :
1). Controlled by automatic computer soft ware
2). No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3). Some parts are Germany brand or other famous brand
4). Our egg tray machine can make different trays at same time by using different moulds
5). Besides egg tray, fruit trays, our machine also can produce industrial package
6). All installation and debugging work will be done before shipment.
7). 20 years' experience on egg tray machine
8). 2 years warranty time
