PLC Controlled 1300pcs Egg Tray Production Line Egg Tray Machine 380V 50hz
Egg tray machine Pulp Molding Machine is composed of the following sections:
1. Egg Tray Pulping System:

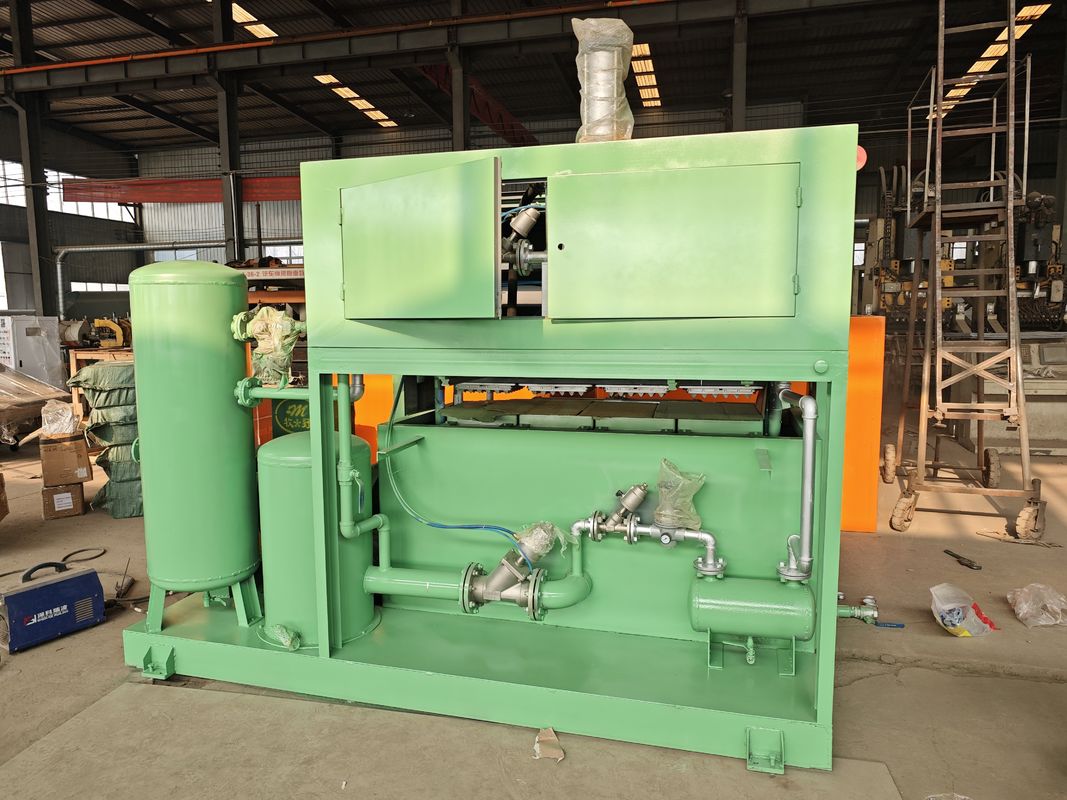

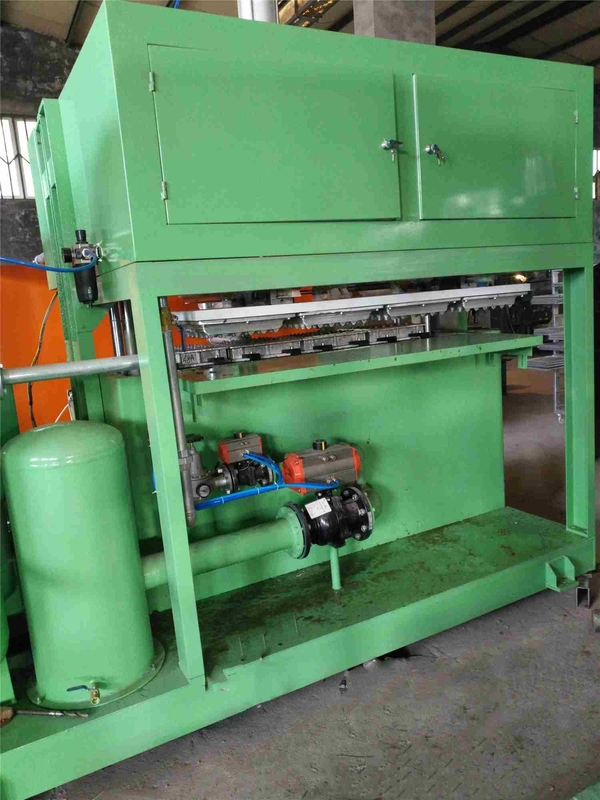

2. Egg Tray Molding Forming System :

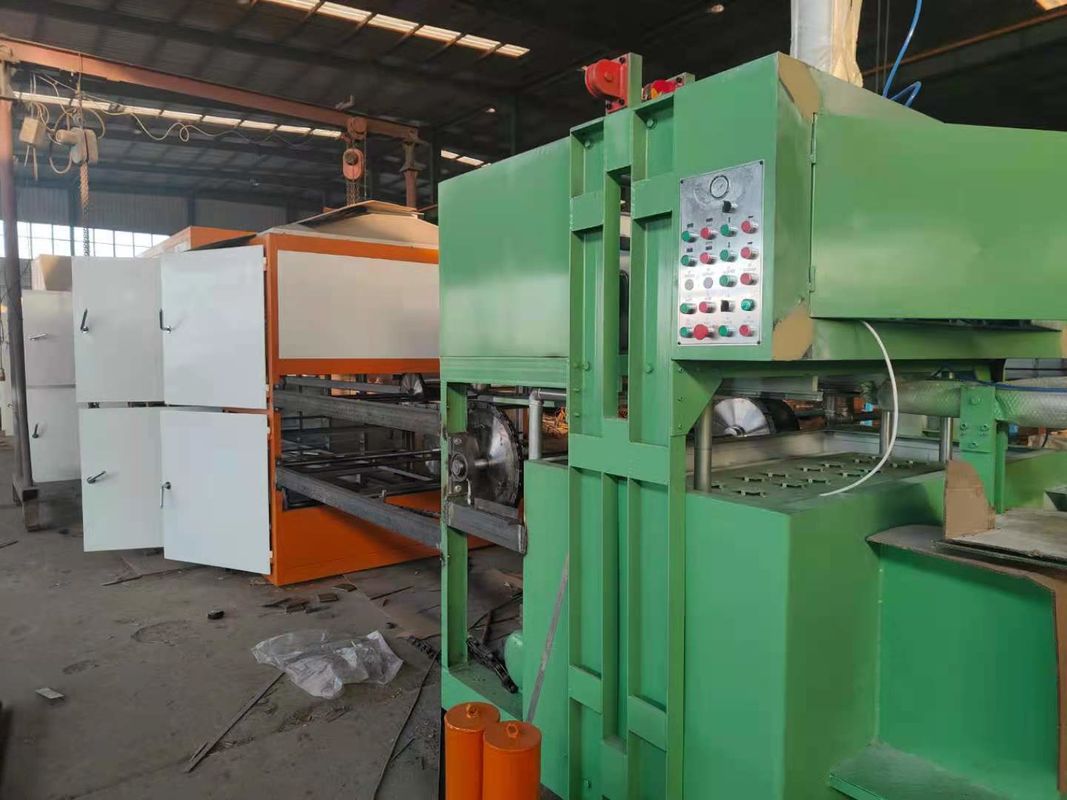

3. Egg Tray Drying system (can use gas,dissel,coal for Boiler burner)
This part is optional as per buyer's budget and weather conditions.
The drying line is protected by the insulation board. The temperature inside the oven can reach 150-200 degree.
4. Egg Tray Automatic counting(optional part):
After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .
Machine Introduction:
1. Automatic and semiautomatic egg tray pulp molding machine and production line
2. It is used for making large quantity easy shape products, like paper egg tray, fruit tray, coffee cup carrier tray, bottle tray, wine tray, egg carton with lid, disposable medical products and industrial packaging products etc.
3. Paper Egg Tray Machine Capacity: 350pcs/h, 700pcs/h, 1000pcs/h, 1300pcs/h, 1800pcs/h, 2000pcs/h, 2400pcs/h, 3000pcs/h, 4000pcs/h, 4500pcs/h, 5000pcs/h, 6000pcs/h.
4. Product Type: Egg Tray Machine
5. Process Type: Paper Pulp Molding Production
6. Raw material: waste paper, waste cardboard, newspapers etc. Any type waste paper without plastic.
7. Boiler fuel heating type: diesel, coal, natural gas, or LPG
8. Power Requirement: 20KW-100KW
9. Voltage needed: 220V-440V
10. Workshop requirement: 100㎡--550㎡
11. Machine Model: ZSJ350--ZSJ6000
12. Workers Requirement: depends on different capacity machine
13. Brand Name: Wanyou
14.Origin Place: Shandong, China
15.After-sales service system: Engineers are available for dispatching abroad to install the machine
Highly used by small and medium company egg tray machines we offered:
| Egg Tray Mold Quantity |
1pcs |
2pcs |
3pcs |
4pcs |
12pcs(3pcs*4) |
32pcs(4*8) |
| Raw material |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
| Egg tray Capacity |
350pcs/hour |
700pcs/hour |
1000pcs/hour |
1300pcs/hour |
1800pcs/hour |
3000pcs/hour |
| Net weight per piece (gram) |
70g-75g |
70g-75g |
70g-75g |
70g-75g |
70g-75g |
70g-75g |
| Waste paper consumption |
0.025ton / hour |
0.06ton / hour |
0.1ton / hour |
0.13ton / hour |
135kg/ hour |
225kg / hour |
| Water Consumption |
0.05ton / hour |
0.1ton/hour |
0.15ton / hour |
0.2ton / hour |
0.5ton / hour |
0.6ton / hour |
| Natural Gas Consumption of Dryer |
12cbm/h |
25cbm/h |
35cbm/h |
50cbm/h |
60cbm/h |
80cbm/h |
| Worker requirement |
2-3workers |
3-4workers |
4-6workers |
4-6workers |
5-7workers |
8-10workers |
| Power Requirement |
Without dryer |
20KW |
30KW |
40KW |
45KW |
70KW |
100KW |
| With dryer |
30KW |
45KW |
60KW |
65KW |
80KW |
150KW |
| Area of workshop |
Without dryer |
More than100M² |
More than 100 M² |
More than 120 M² |
More than 150 M² |
More than 200 M² |
More than 250 M² |
| With dryer |
More than200 M² |
More than 240 M² |
More than300M² |
More than 320 M² |
More than 400M² |
More than 520M² |
| Container Requirement |
Without dryer |
20ft*1 |
20ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
40ft*1 |
| With dryer |
40ft*1+20ft*1 |
40ft*2+20ft*1 |
40ft*2+20ft*1 |
40ft*3 |
40ft*3+20ft*1 |
40ft*5 |
|
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
|
Payment and delivery
| Trade terms |
FOB Qingdao or EXW Factory |
| Delivery time |
About 30 working days after receiving the deposit. |
| Payment term |
BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time |
Two years after the Egg tray machine received. |
| TERMS OF DELIVERY |
FOB Qingdao Port, China |
| Package |
In container |
| Installation |
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) |
|
Our Machine Advantages:

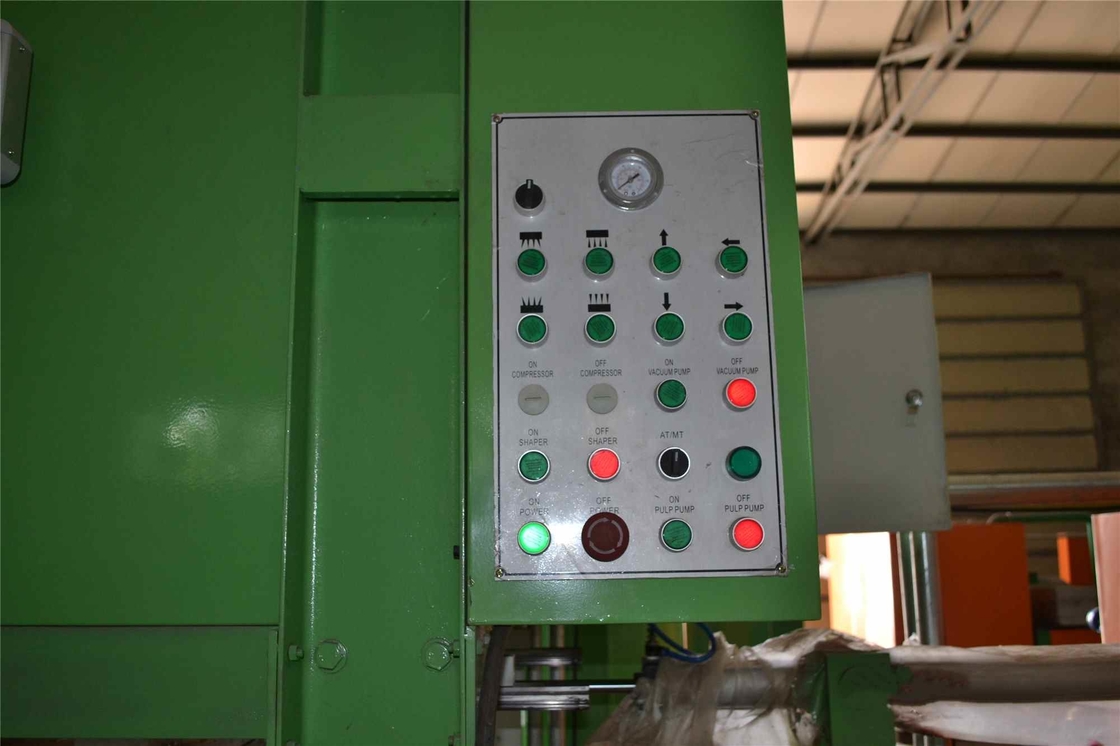

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time
Don’t miss the chance of promoting the production efficiency of your company.
Egg Tray Machine end products includes: The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.
