High Efficiency Paper Pulp Egg Tray Machine Prcie , Egg Carton/Fruit Tray Making Machine
Egg Tray Machin Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. The installation of the whole line is easy.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.
Our machine can turn your waste paper and books into Money!
Our machine is mainly includes:

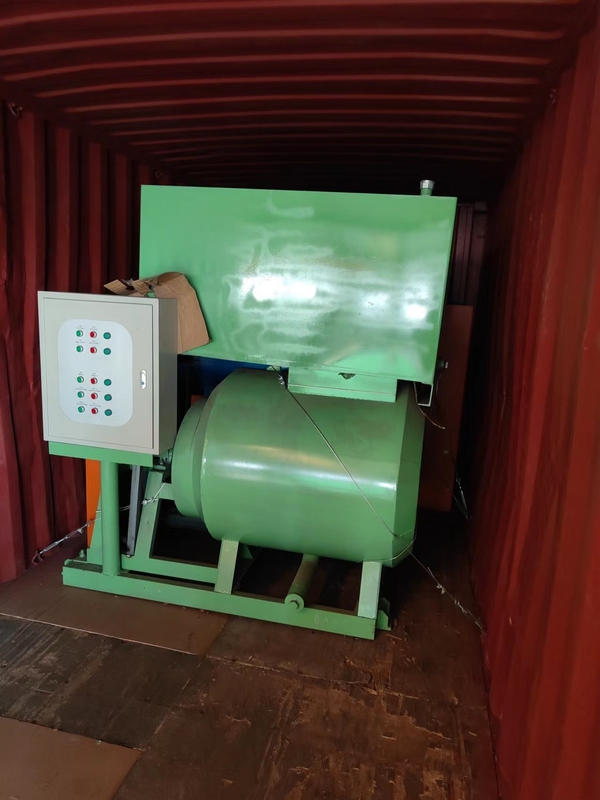

1. Pulping System:

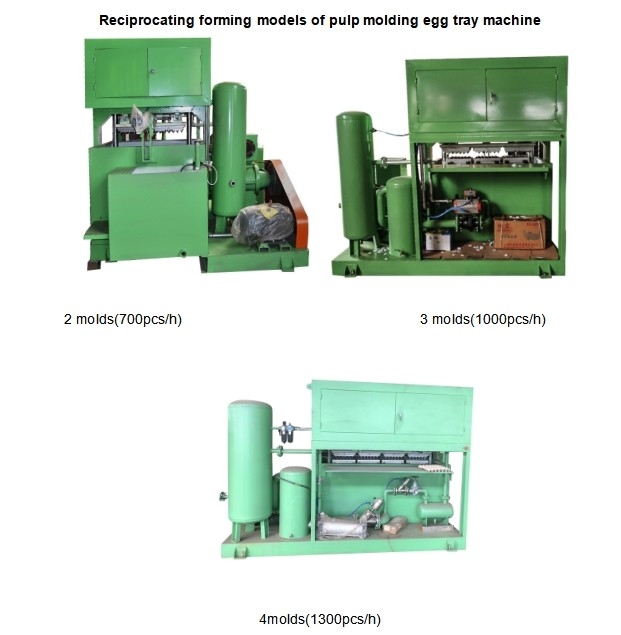

2. Forming System :

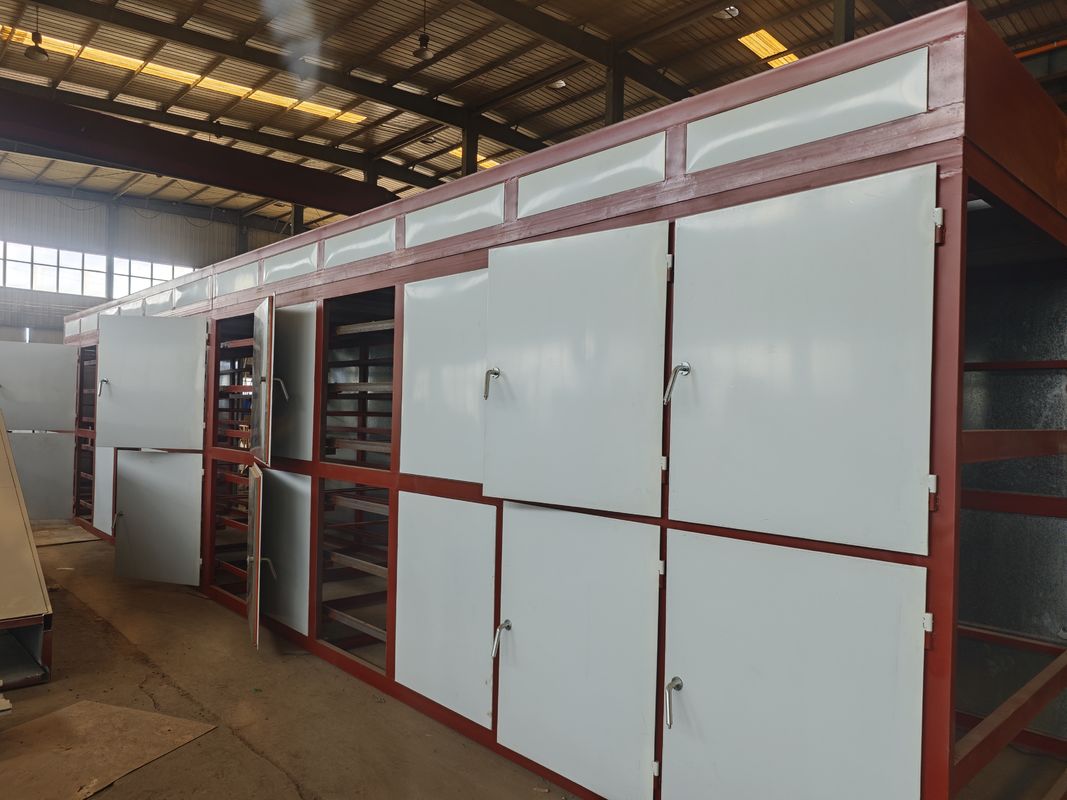

3. Drying system (can use gas,dissel,coal for Boiler burner)
egg tray machine 4 layer metallic dryer (optional for customer)
4. Automatic counting:(optional for egg tray machine produciton line)
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -5000pcs/h
Color: As customer needs
Frequency: 50Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
Technical parameters of 700pcs/h egg tray machine production line/Pulp molding machine
| Egg Tray Mold Quantity |
2pcs |
| Raw material |
Waste paper |
| Egg tray Capacity |
700pcs/hour |
| Net weight per piece (gram) |
70g-75g |
| Waste paper consumption |
0.06ton / hour |
| Water Consumption |
0.1ton/hour |
| Natural Gas Consumption of Dryer |
25cbm/h |
| Worker requirement |
3-4workers |
| Machine Length |
7m |
| Machine weight |
6-20tons |
| Power Requirement |
Without dryer |
30KW |
| With dryer |
45KW |
| Area of workshop |
Without dryer |
More than100M² |
| With dryer, dryer-18m |
More than240 M² |
| Container Requirement |
Without dryer |
20ft*1 |
| With dryer |
40ft*2+20ft*1 |
| Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
| Trade terms |
FOB Qingdao or EXW Factory |
| Delivery time |
About 30 working days after receiving the deposit. |
| Payment term |
BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time |
Two years after the Egg tray machine received. |
| TERMS OF DELIVERY |
FOB Qingdao Port, China |
| Package |
In container |
| Certification |
CE |
| Installation |
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) |
|
Our Machine Advantages:
1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
End product of paper egg tray machine/egg tray production line
