40KW-75KW Waste Paper Pulp Molding Machine/Egg Tray Machine With Aluminum Molds

The Paper Egg Tray Machine includes pulp making system, forming system and drying system.

1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.

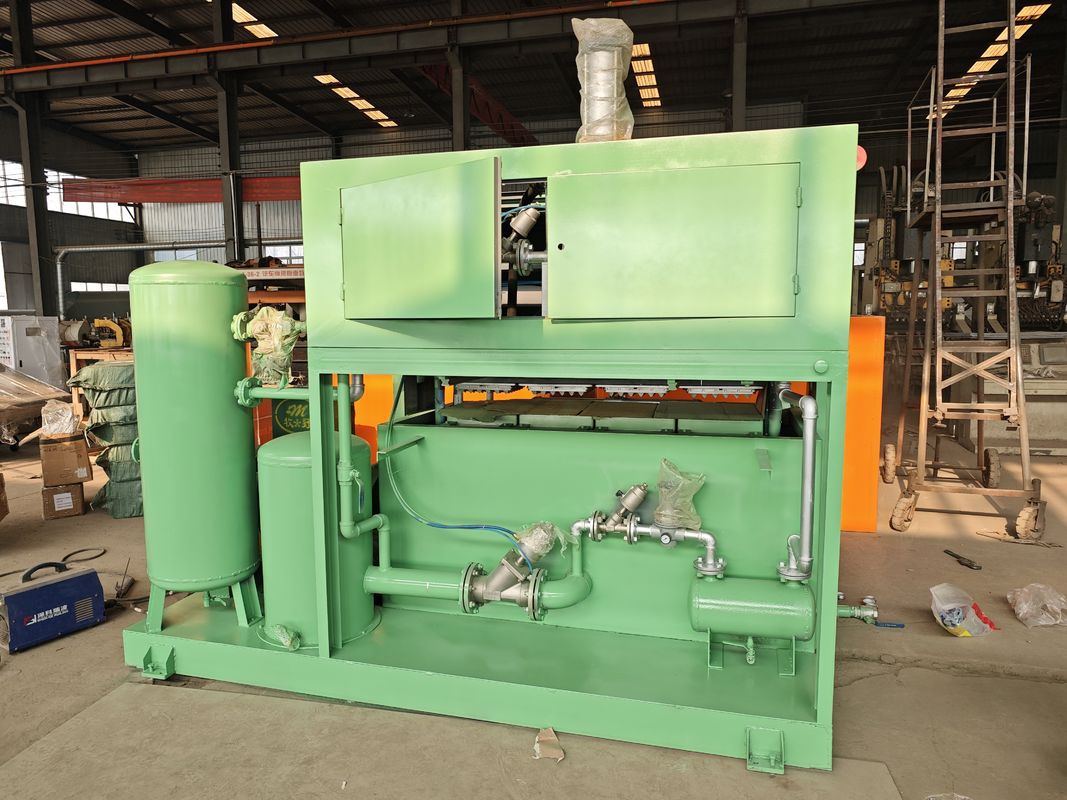

1. The molding machine absorbs the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, then pumps the water to the tank for storage.
2. The molding mold absorbs the pulp and forms it, then the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.

Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases. The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
