2500pcs/h Automatic Paper Egg Tray Molding Machine With Egg Tray Dryer

2500pcs/h Automatic Paper Egg Tray Molding Machine With Egg Tray Dryer

Automatic Paper Egg Tray Molding Machine

2500pcs/h Paper Egg Tray Molding Machine

2500pcs/h egg tray molding machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ series

Contact Us
Request A Quote
Product Details
Raw Material:
Waste Paper, Waste Cardboard, Carton
Guarantee:
2years
Egg Tray Forming Type:
Rotary Egg Tray Machine
Processing Type:
Pulp Molding Machine
Color:
Customized Color
Voltage:
220V/380V,380v / 450v
Metal Dryer:
With Metal Dryer
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
65 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description

                                Automatic paper egg tray pulp molding making machine with egg tray dryer





 Features of egg tray dryer:



1. controlled by computer, no needs any construction.



​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.



​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...



​ 4. with 2years warranty.



​ 5. The installation of the whole line is easy.



Quick Detail of egg tray dryer:

Condition: New
Product Type Egg Tray Machine with egg tray dryer
Processing Type Pulp Molding Machine
Place of Origin Shandong, China (Mainland)
Brand Name RUNLIANG
Voltage 220-440V
Power(W) Different Machine Model
Dimension(L*W*H) Depends
Weight 8 tons-15tons
Certification CE & ISO
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas
Capacity 350pcs/h -2500pcs/h
Color As customer needs
Frequency 50Hz-60Hz
Application egg tray,fruit tray,bottle tray
Workshop required 150-300㎡
Worker required 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation Automatic and fully automatic
Keyword

egg carton machine



Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!



Our machine mainly includes:

Pulping SystemPut the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2500pcs/h Automatic Paper Egg Tray Molding Machine With Egg Tray Dryer 0

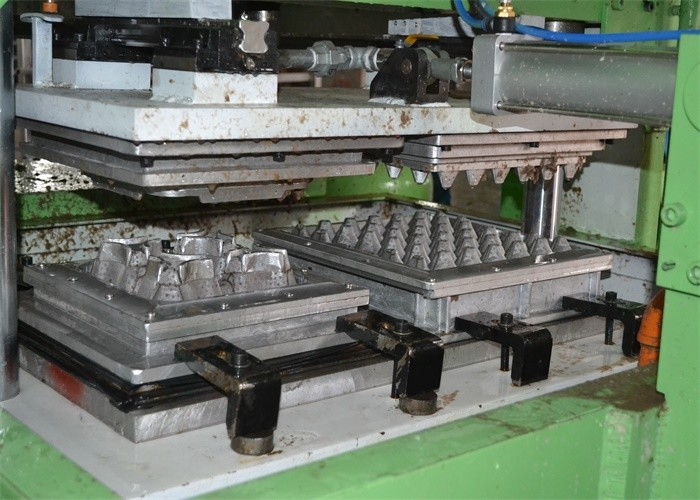

Forming System:

2500pcs/h Automatic Paper Egg Tray Molding Machine With Egg Tray Dryer 1



The Egg carton Molding Forming System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg carton forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

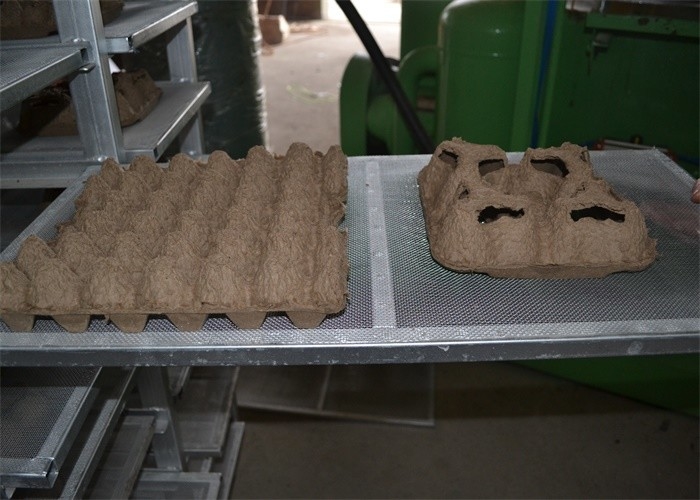

Drying system (fuel of boiler burner can use gas,dissel,coal ):

2500pcs/h Automatic Paper Egg Tray Molding Machine With Egg Tray Dryer 2



There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.



Automatic counting:



After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .



Technical parameters of 2500pcs/h egg tray machine production line/Pulp molding machine



  Main Parts

Pulping system



Including :

mill pulp pump -1set

water pump-2sets

pulp pump -2sets

pulping machine –1sets

Forming system



Including

24 moulds (3*8)forming machine -1set

Vacuum pump-1set

Compressor -2sets

Washer –1set

Vacuum tank-1pcs

Air tank—1pcs

Drying system



Including

Drying oven 4 layer –1set

(L36M*W2M*H2.2M)

Chain and tray –1sets

Hot air pipe –1sets

Chain wheel with shaft—1sets

Delivery belt –1set

Drive motor –1set

Boiler



Including

Boiler –1set

Natural gas burner(Riello)-1set

Fan with motor -1set

Electric control -1set



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 50 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time



Factory Introduction


Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Don’t miss the chance of promoting the production efficiency of your company.





2500pcs/h Automatic Paper Egg Tray Molding Machine With Egg Tray Dryer 3
