Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
RL- ZJM
6 caves egg carton machine CE approved used paper egg tray making machine
Machine Introduction egg carton machine:
Large capacity fully automatic egg tray machine produciton line

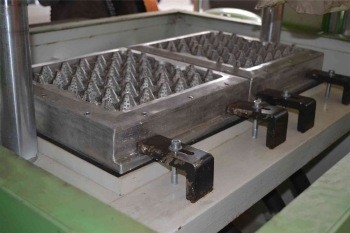

The fully automatic production line was equipped with automatic drying system, after pulp making process and autoamtic forming process, the transfer molds plate will transfer wet prodcuts to the drying system automatically, and then after drying, the final products will be collected by autoamtic stacker.
We provide both single-layer drying system and multi-layers drying system, compared with the former, the largger is the latest technology, which can save engrgy consumption, workshop space requirement etc.
The drying system use natual gas,diesel, coal, wood etc. As fuel, the steam, heat conducting oil and heavy oil also could be applied to dry te products, but the investment and field occupation would be increased.
This production line is suitable for the following products:

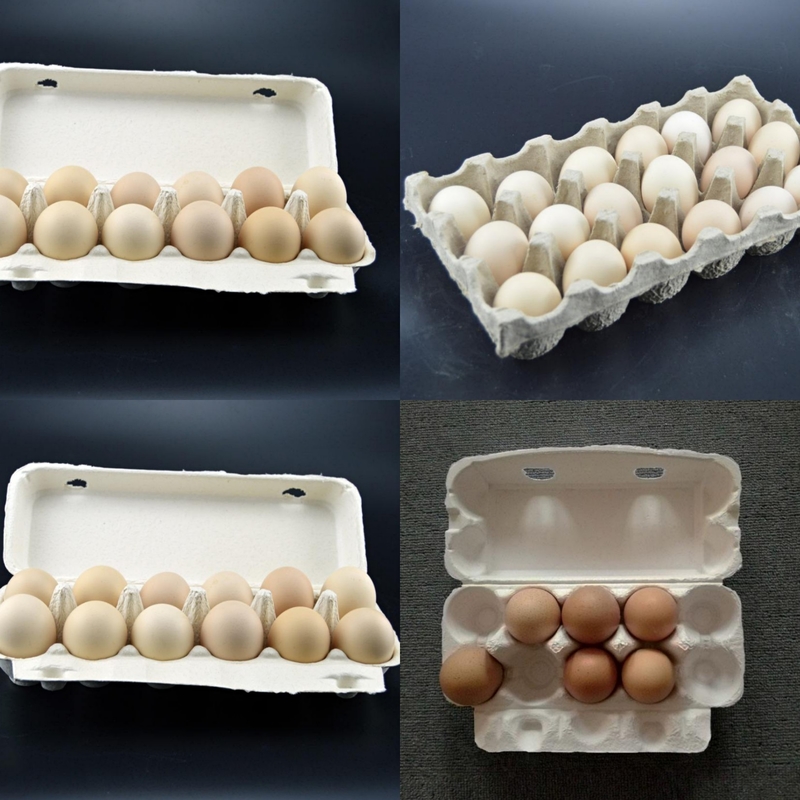

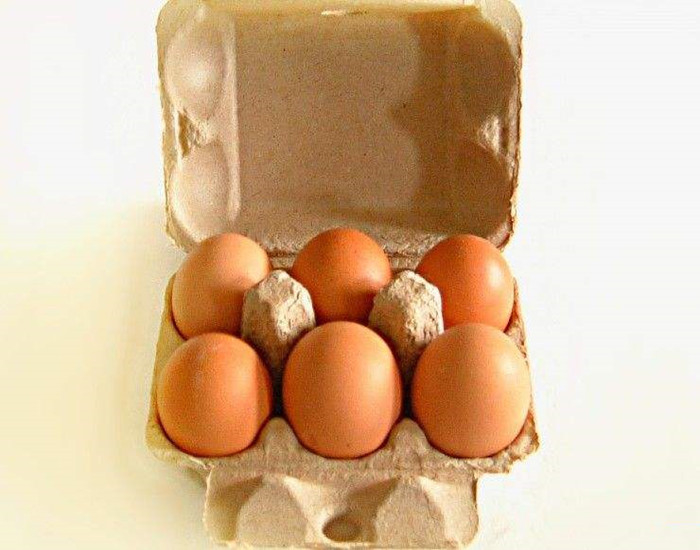

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
6000pcs per hour egg carton machine:
Data of 6 caves egg carton machine
|
Product Name
|
6 caves egg carton machine |
|
Model No.
|
ZSJ-6000 |
|
Production capacity
|
6000pcs/hour |
|

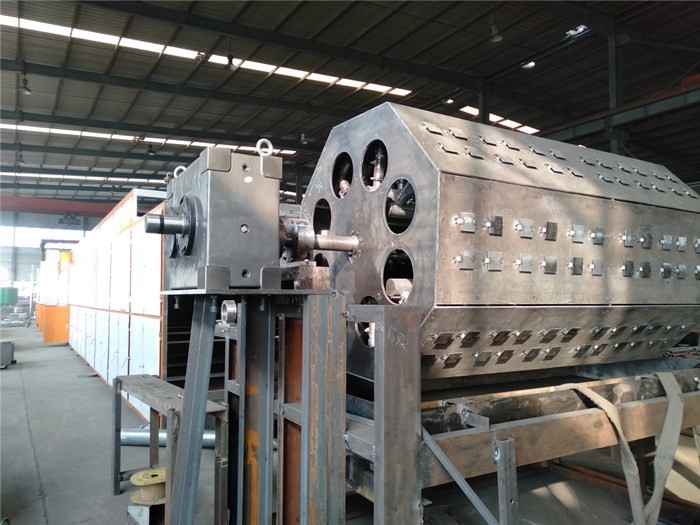

Forming Machine
|
Rotary type |
|
Dryer
|
6 layer dryer |
|
Workshop Size
|
800m2 |
|
Material
|
Waste recycle paper |
|
Electricity Consumption
|
220kw |
|
Water Consumption
|
1.5 tons per hour |
|
Material consumption
|
450-500kg/hour |
|
Worker
|
10-12 workers |
|
Fuel
|
Diesel/Natural gas/ LPG/ Steam/Electricity/Biomass fuel |
|
Automation
|
Fully Automatic |
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELL
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
