Low Noise Paper Egg Tray Machine , Egg Box Making Machine Paper Apple Tray Making

Low Noise Paper Egg Tray Machine , Egg Box Making Machine Paper Apple Tray Making

paper tray making machine

egg tray moulding machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

RL- ZJM

Contact Us
Request A Quote
Product Details
Raw Material:
Waste Paper, Waste Cardboard, Carton
Processing Type:
Pulp Molding Machine
Condition:
New
Warranty:
2 Years
Voltage:
380V-440V
Product Type:
Egg Tray Machine
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
in container
Delivery Time
20 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



Low Noise Paper Egg Tray Machine , Egg Box Making Machine Paper Apple Tray Making





Paper Egg Tray Machine , Paper Apple Tray Making Machine With Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays.

Paper Egg Tray Machine has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.

Our egg tray machine is better quality than that of other egg tray production line supplier. We have been in the egg tray making machine filed for over 20 years. We have advanced technology and good quality spare parts for the machine production.

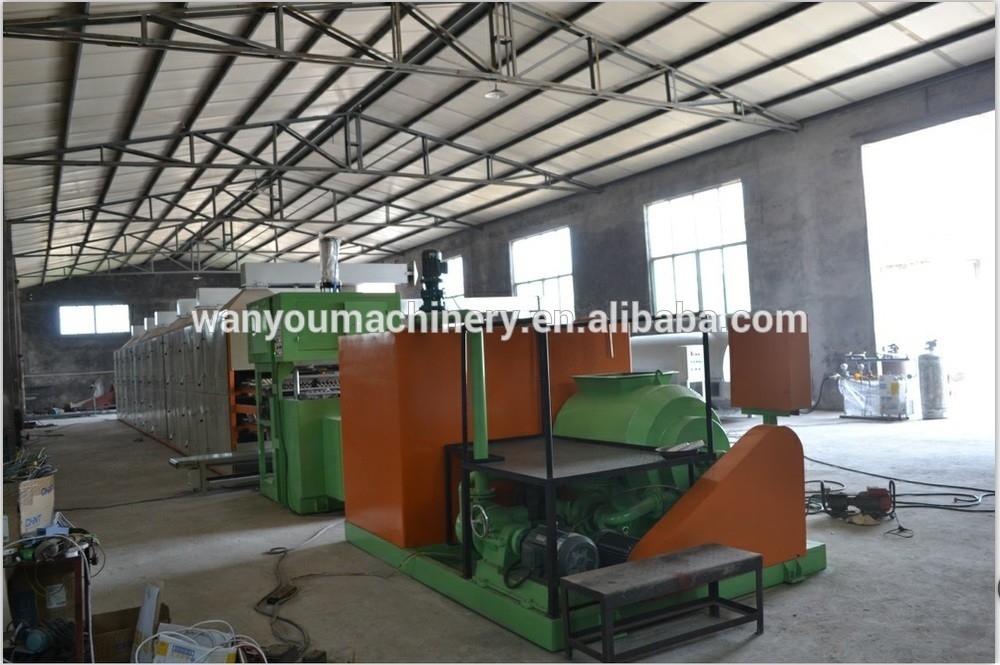

Egg tray machine working flow as the following:

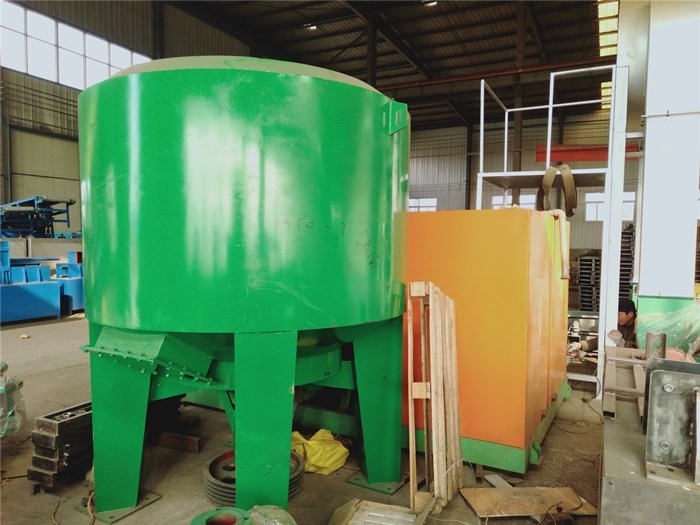

1. Pulping system



Pulper, 1.0M3,15kw;



vibration screen, 0.9M2,3kw;



mixer; pulp pump;water pump,control cabinet for pulping system,etc

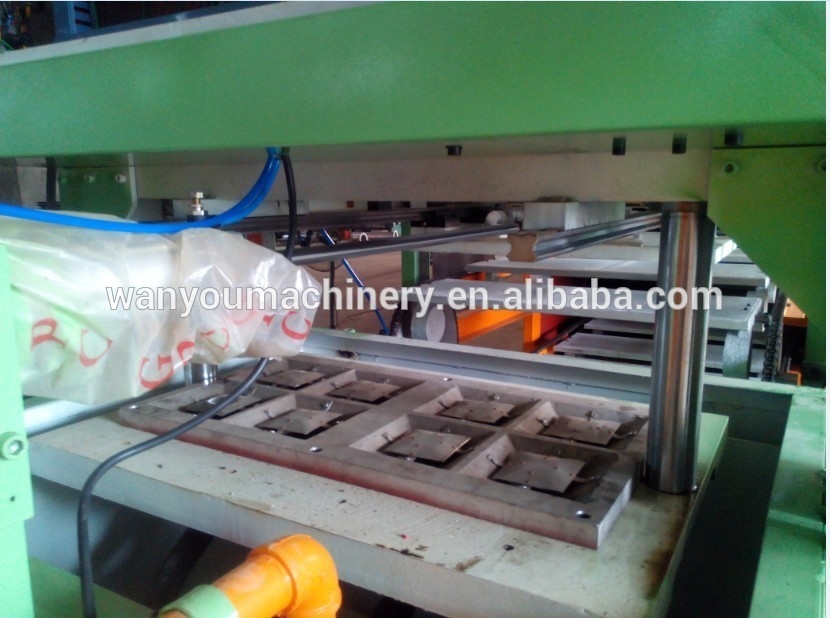

2. Forming system



Includes: 1pc forming machine, Molding plate(depends on different capacity),



Forming efficiency:5-6cycles/min;



Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.





3. Drying system

There are burners and blowers and boiler for the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.



All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!



Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h-5000pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-600㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Technical data (700pcs/h for example)

Egg Tray Mold Quantity 2pcs
Raw material Waste paper
Egg tray Capacity 700pcs/hour
Net weight per piece (gram) 70g-75g
Waste paper consumption 0.06ton / hour
Water Consumption 0.1ton/hour
Natural Gas Consumption of Dryer 25cbm/h
Worker requirement 3-4workers
Machine Length 7m
Machine weight 6-20tons
Power Requirement Without dryer 30KW
With dryer 45KW
Area of workshop Without dryer More than100M²
With dryer, dryer-18m More than240 M²
Container Requirement Without dryer 20ft*1
With dryer 40ft*2+20ft*1
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 35 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Low Noise Paper Egg Tray Machine , Egg Box Making Machine Paper Apple Tray Making 0

FAQ



(1). What kind of material we can use as the raw material?



Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.



(2). What kind of Fuel can be used for the whole production line?



Coal, natural gas, and dieseal oil.



(3). What kind of products can be made by this machine?



All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.



(4). Are you a manufacturer or a trading company?



Yes, our company has been fabricating pulp molding machine since 2000. We are one of the



most important pulp molding machine maufacturers in the world, and we are famous pulp



molding machine manufacturer in China, providing high quality and production capacity pulp molding

machinery at reasonable prices to the world.

(5). What capacity egg tray machine can you supply?

At the moment, we can supply 350 pcs/h, 700, 1000, 1300, 1800, 2000, 2400, 3000pcs/h capcaity egg tray

machine.
