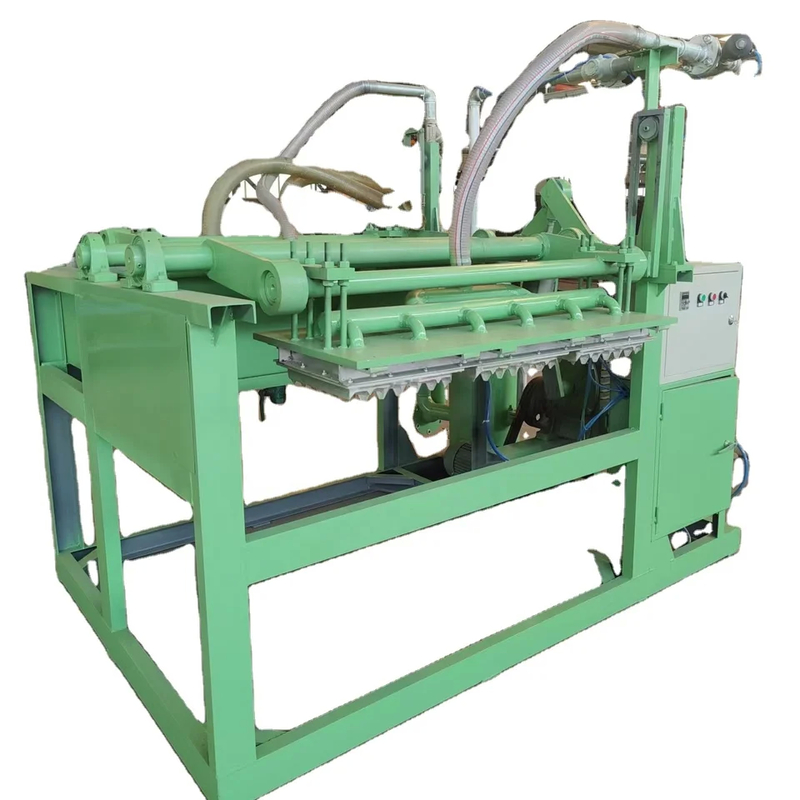

Paper Pulp Molding Machine Egg Tray Manufacturing Machine Low Energy Consumption

Paper Pulp Molding Machine Egg Tray Manufacturing Machine Low Energy Consumption

egg tray manufacturing machine

egg tray moulding machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

RL- ZJM

Contact Us
Request A Quote
Product Details
Color:
As Customer Needs
Raw Material:
Waste Paper, Waste Cardboard, Carton
Guarantee:
2years
Egg Tray Forming Type:
Rotary Or Reciprocating Egg Tray Machine
Processing Type:
Pulp Molding Machine
Power:
20KW-100KW
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
40 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description





Paper Pulp Molding Egg Tray Making Machine Computer Control Low Energy Consumption



 Paper Pulp Molding Egg Tray Making Machine Computer Control Low Energy Consumption



The Paper Pulp Molding Egg Tray Making Machine Computer Control Low Energy Consumption is mainly combined by THREE PARTS:

1. Pulping system: Use waste paper and water as raw material and pulp up;

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate

The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.

Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.

If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.

Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)



Egg Tray Machin Features:

1. controlled by computer, no needs any construction.

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2years warranty.

​ 5. The installation of the whole line is easy.



Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!





Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h -2500pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-300㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine

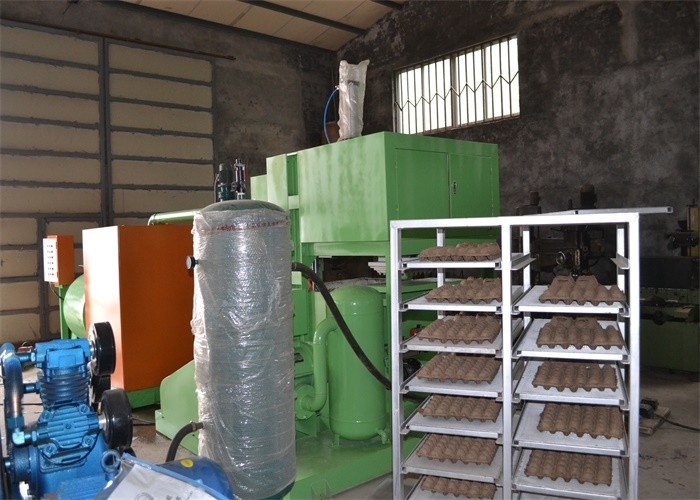

Egg Tray Machine Composition



Main Parts Description Quantity Motor power

Pulping system



Pulping machine 1set 7.5kw
Pulp Pump 1set 4kw
Pulp pump 1set 1.5kw
Mill pulp pump 1set 7.5kw
Water pump 2sets 0.75kw*2=1.5kw
Mixer 1set 1.5kw
Pulp pool and Water pool 1set

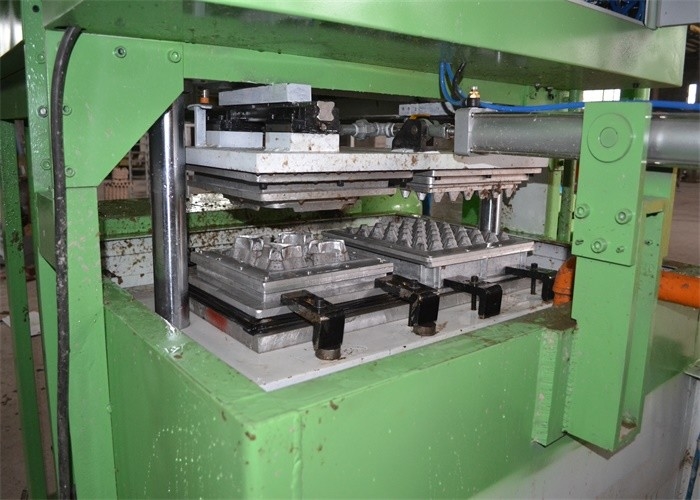

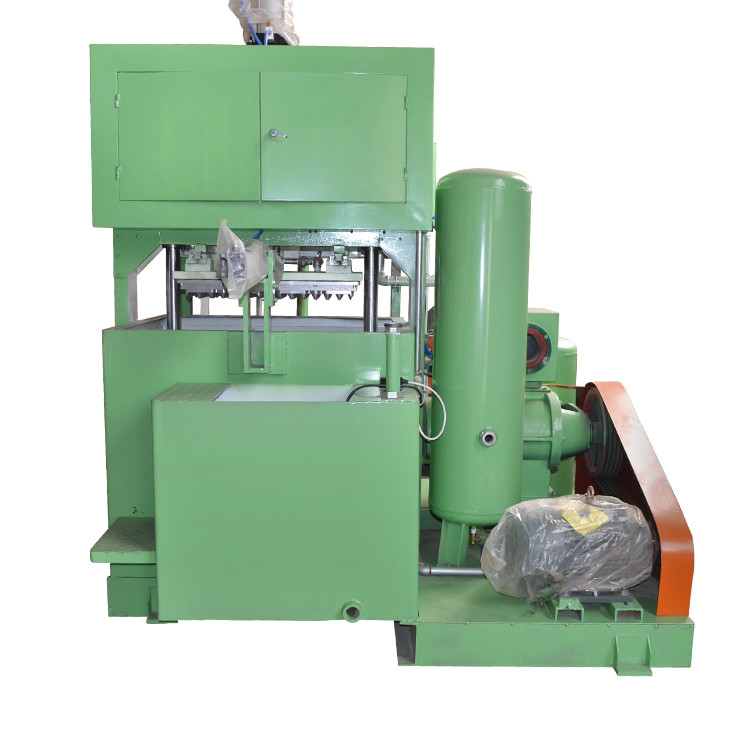

Forming system































Moulding machine



1set 1pcs Aluminum Forming Molds
Vacuum pump 1set 7.5kw
Mold Washer 1set 1.1kw
Pulp pump 1set 1.5kw
Air Compressor 1set 11kw
Vacuum tank 1set
Air tank 1set



Technical data



Egg Tray Mold Quantity 1pcs 2pcs 3pcs 4pcs 12pcs(3pcs*4) 32pcs(4*8)
Raw material Waste paper Waste paper Waste paper Waste paper Waste paper Waste paper
Egg tray Capacity 350pcs/hour 700pcs/hour 1000pcs/hour 1300pcs/hour 1800pcs/hour 3000pcs/hour
Net weight per piece (gram) 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g
Waste paper consumption 0.025ton / hour 0.06ton / hour 0.1ton / hour 0.13ton / hour 135kg/ hour 225kg / hour
Water Consumption 0.05ton / hour 0.1ton/hour 0.15ton / hour 0.2ton / hour 0.5ton / hour 0.6ton / hour
Natural Gas Consumption of Dryer 12cbm/h 25cbm/h 35cbm/h 50cbm/h 60cbm/h 80cbm/h
Worker requirement 2-3workers 3-4workers 4-6workers 4-6workers 5-7workers 8-10workers
Power Requirement Without dryer 20KW 30KW 40KW 45KW 70KW 100KW
With dryer 30KW 45KW 60KW 65KW 80KW 150KW
Area of workshop Without dryer More than100M² More than 100 M² More than 120 M² More than 150 M² More than 200 M² More than 250 M²
With dryer More than200 M² More than 240 M² More than300M² More than 320 M² More than 400M² More than 520M²
Container Requirement Without dryer 20ft*1 20ft*1 40ft*1 40ft*1 40ft*1 40ft*1
With dryer 40ft*1+20ft*1 40ft*2+20ft*1 40ft*2+20ft*1 40ft*3 40ft*3+20ft*1 40ft*5


Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  Depends on different egg tray machine model
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time



Factory Introduction


Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Don’t miss the chance of promoting the production efficiency of your company.



Welcome to contact us.







Paper Pulp Molding Machine Egg Tray Manufacturing Machine Low Energy Consumption 0



FAQ :

1. What is Semi Automatic type ?



If only order the pulping system and the forming system, that's Semi Automatic type.

And you'll have to do the work of drying up the trays manually;



2. What is Fully Automatic type ?

The Fully Automatic production line includes the Drying system and the whole procedure can be done Automatically .

Of course, the price and the required work space would have big difference from the semi-automatic type.

3. Quality

--- Our machines use UK Technics and part of the components are Germany-made (ex: Ball valve) .



-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .

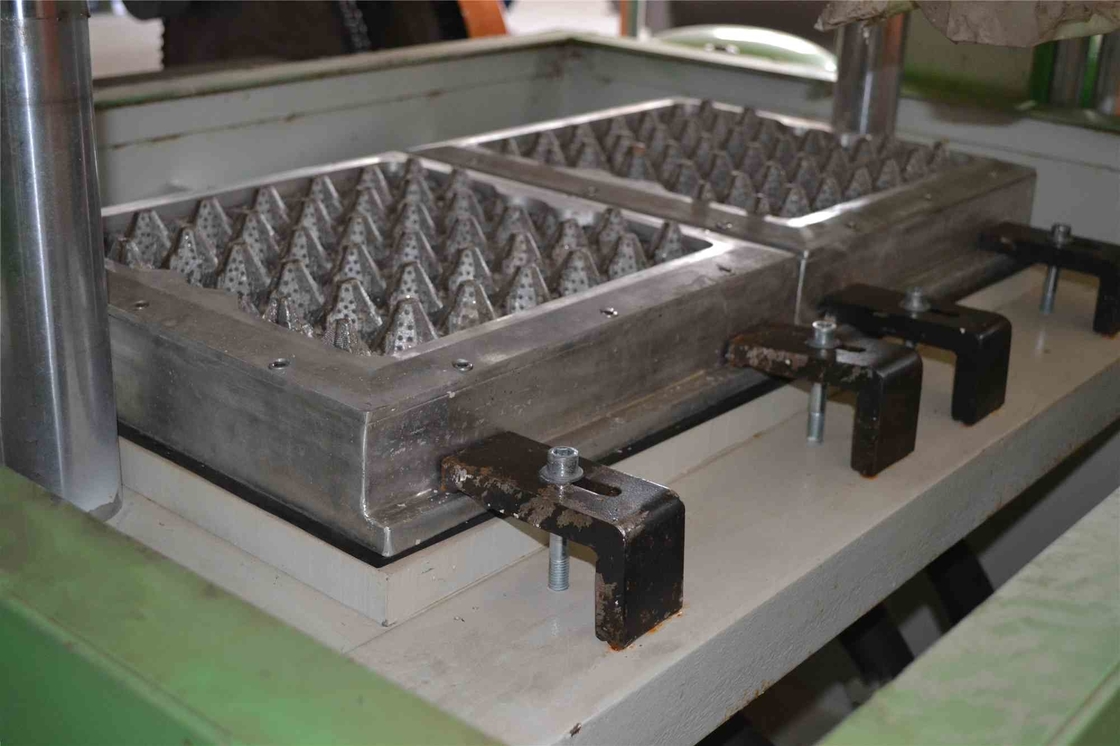

-- The Egg tray molds material is Aluminum which can keep the fixed shape much better than that made of rubber material.



--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;



--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .



---Some spare parts are made by famous company in Germany





Welcome to contact us!
