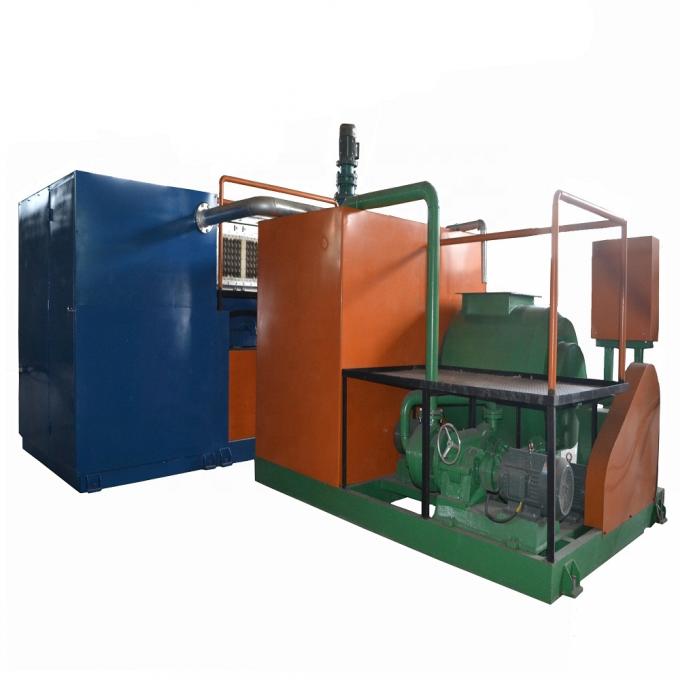

Wanyou small pulp molding nursery pot tray egg paper tray machine
China Recyclable fully disposable paper dish making machine/Pulp Molding Machine / Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
| 1, | Egg tray mould quantity | 1pcs | 2pcs |
| 2, | Raw material | Waste paper | Waste paper |
| 3, | Output for egg tray | 350pcs/hour | 700pcs/hour |
| 4, | Net weight per piece (gram) | 70g-75g | 70g-75g |
| 5, | The volume of waste paper consumed | 0.025ton / hour | 0.06ton / hour |
| 6, | The volume of water consumed | 0.05ton / hour | |
| 7, | Operators number | 2-3workers | 3-4workers |
| 8, | Area of workshop | More than 200M² | More than 240M² |
| 9, | Capacity of power | 25KW | 40KW |

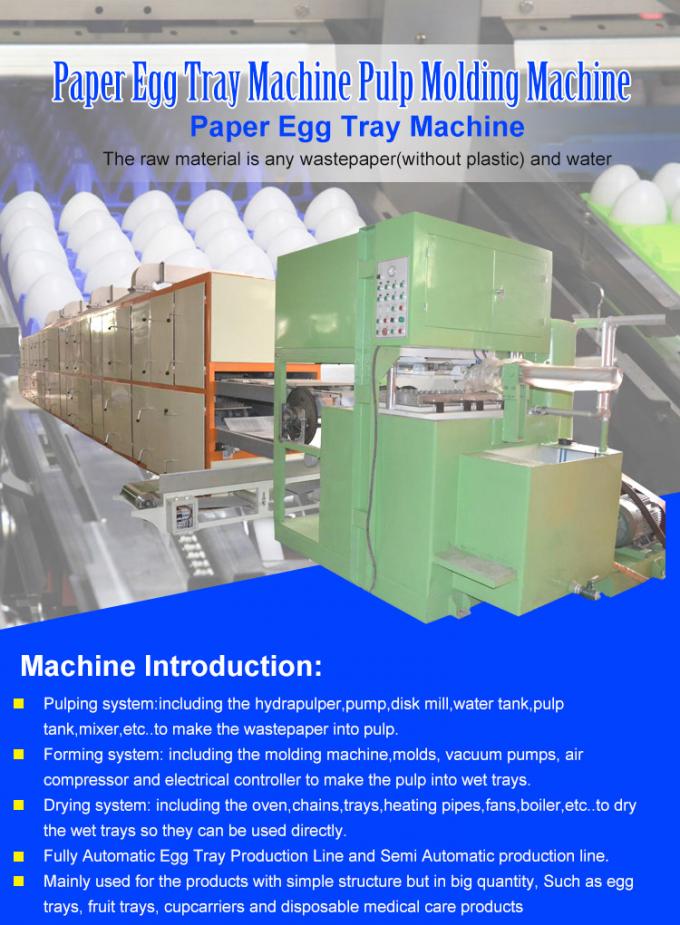

The Egg Tray production line is mainly combined by THREE PARTS:

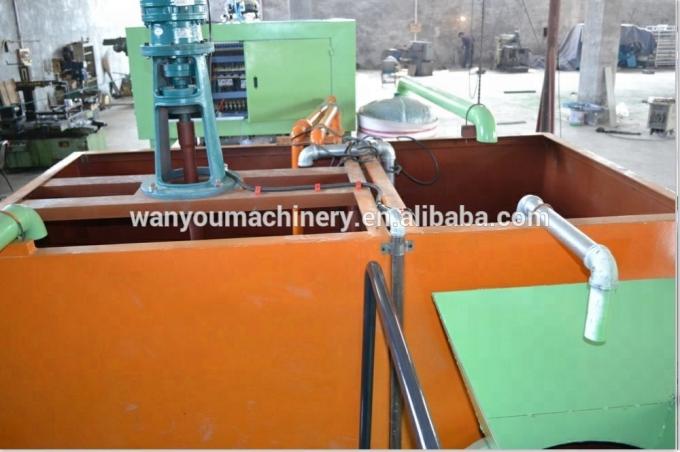

1. Pulping system: Use waste paper and water as raw material and pulp up;

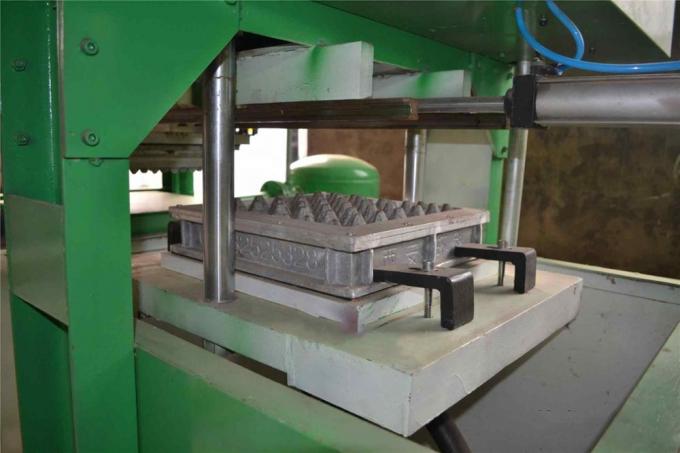

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

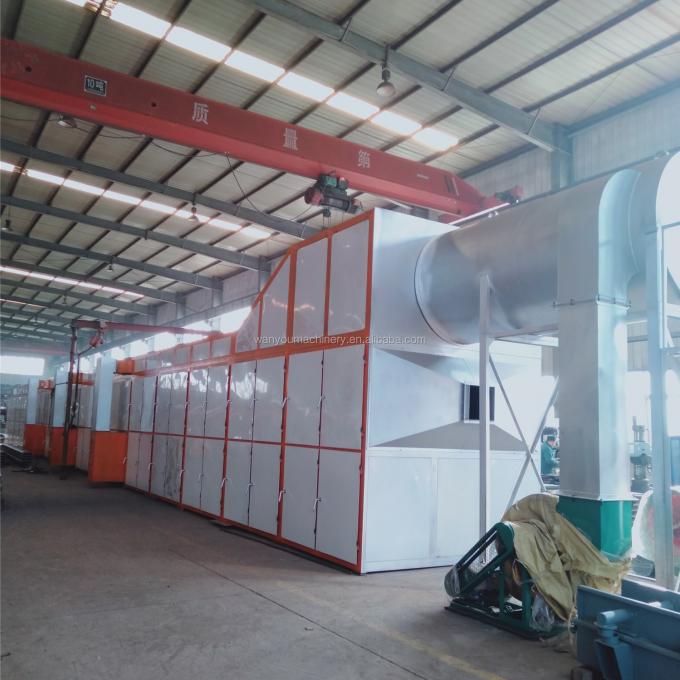

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate
The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
Samples:
