Jinan wanyou egg tray Paper Tray Forming Machine For Pulp Moulding

Jinan wanyou egg tray Paper Tray Forming Machine For Pulp Moulding

paper Egg pulp molding machine

700pcs / Hour pulp molding machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ series

Contact Us
Request A Quote
Product Details
Product Type:
Tray Forming Machine
Raw Material:
Waste Paper Wood Pulp
Warranty:
2 Year
Weight:
About 10 Tons
Dry Materials:
Conveyor,brick,dryer
Dry Fuel:
Diesel,coal ,gas
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
in container
Delivery Time
35 working days
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 set per month
Product Description

                 Jinan wanyou egg tray Paper Tray Forming Machine For Pulp Moulding



Egg Tray Machine (pulp molding machine) uses waste paper as raw material and produce different kinds of products according to your requirement,such as egg tray/dishes ,egg carto/box,fruit tray,industrial package tray,seeding tray ,win tray ,shoe support and small products packages ,etc. The different final products are decided by your market choice.



Details of tray forming machine:



Technical Parameters
Egg Tray mould quantity 2pcs Container Required
Raw material Waste paper

About 20ft*1

(without dryer)

Output for egg tray 700pcs/hour
Net weight per piece (gram) 70g-75g
The volume of waste paper consumed 53kg / hour
The volume of water consumed 0.15ton / hour

The natural gas consumped of the dryer(about)



25cbm/h




Diesel Consumption 20kg/h
Machine Weight 5-20tons
Egg tray Size 295mm*295mm 30eggs

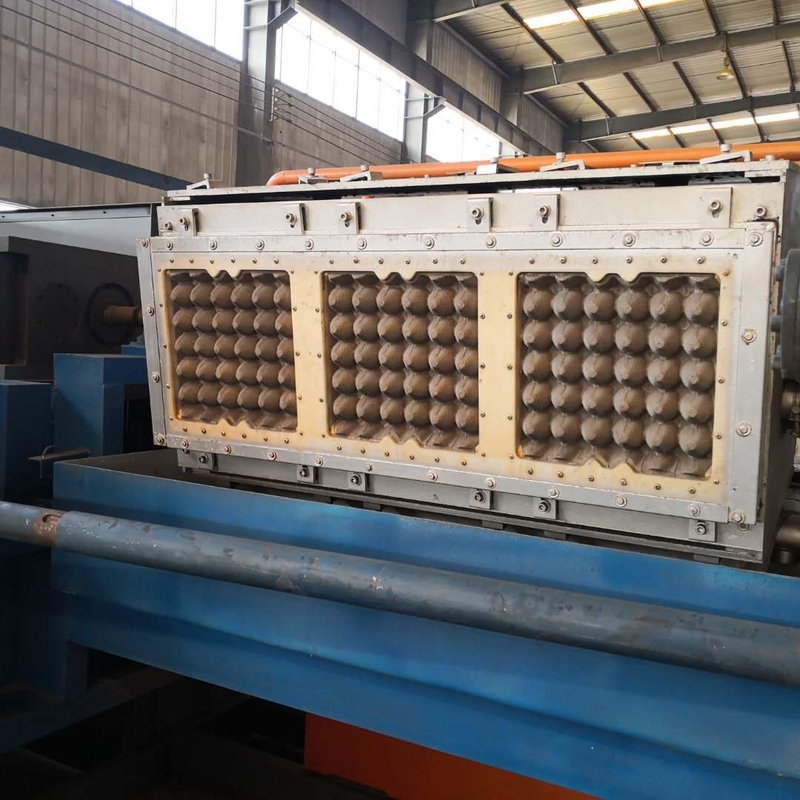

Jinan wanyou egg tray Paper Tray Forming Machine For Pulp Moulding 0

Two parts of tray forming machine:



  Main parts Quantity Picture

Pulping system





Including :

mill pulp pump -1set

water pump-2sets

pulp pump -2sets

1M³pulping machine –1sets

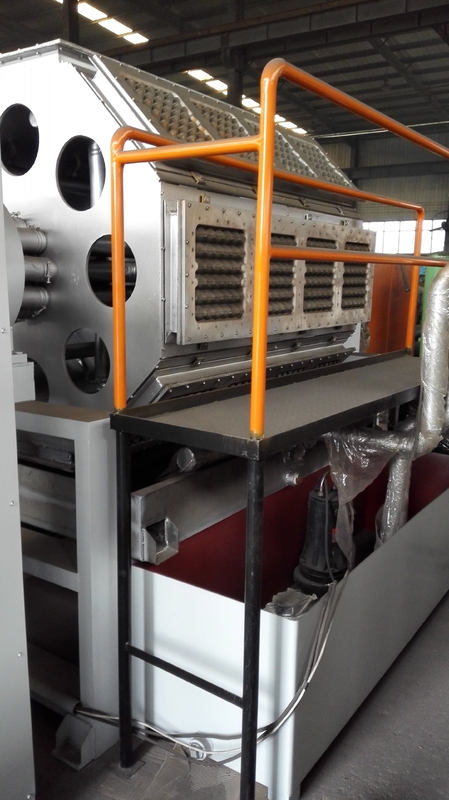

1set Jinan wanyou egg tray Paper Tray Forming Machine For Pulp Moulding 1

Forming system



Including

2 moulds forming machine -1set

Vacuum pump-1set

Compressor -1set

Washer –1set

Vacuum tank-1pcs

Air tank—1pcs

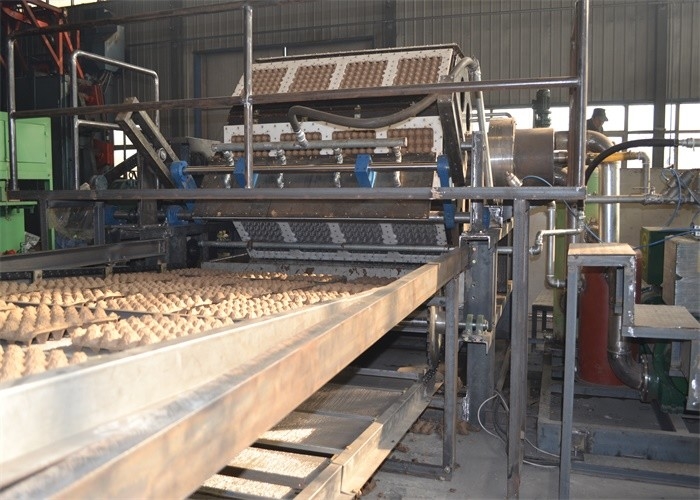

1set Jinan wanyou egg tray Paper Tray Forming Machine For Pulp Moulding 2

Jinan wanyou egg tray Paper Tray Forming Machine For Pulp Moulding 3

Machine Features of Paper Egg Tray Making Production Line :







Advantages of our machine:

1). Controlled by automatic computer soft ware

2). No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material

3). Some parts are Germany brand or other famous brand

4). Our egg tray machine can make different trays at same time by using different moulds

5). Besides egg tray, fruit trays, our machine also can produce industrial package

6). All installation and debugging work will be done before shipment.

7). 20 years' experience on egg tray machine

8). 2 years warranty time
