Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
RL- ZJM
Video

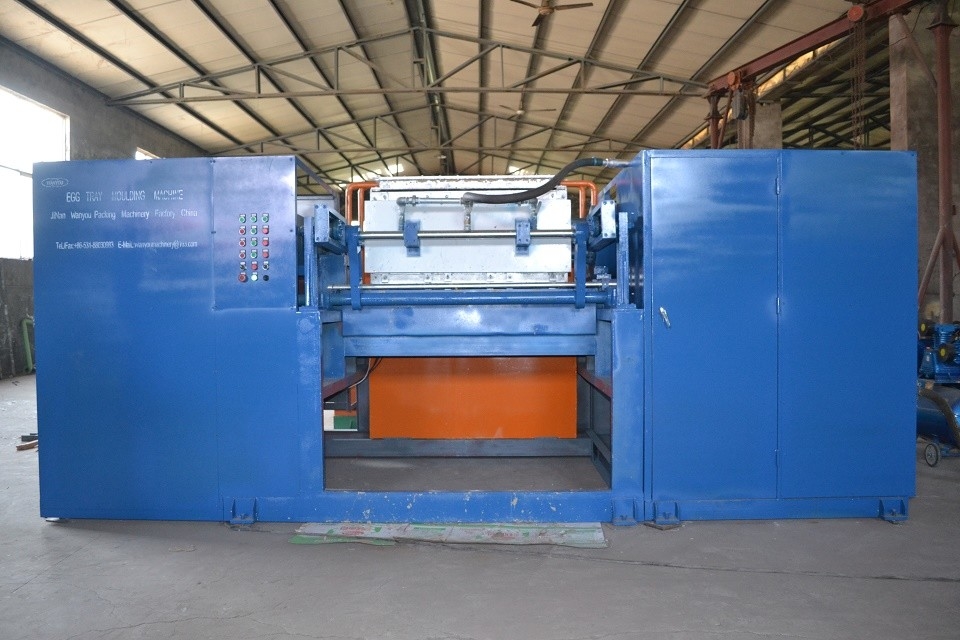

Semi Automatic Paper Egg Tray Machine / Eco-friendly Egg Tray / Carton Making Machine
Semi Automatic Paper Egg Tray Machine / Eco-friendly Egg Tray / Carton Making Machine
This type machine uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw materia
It is composed of following parts:
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2. Forming System :

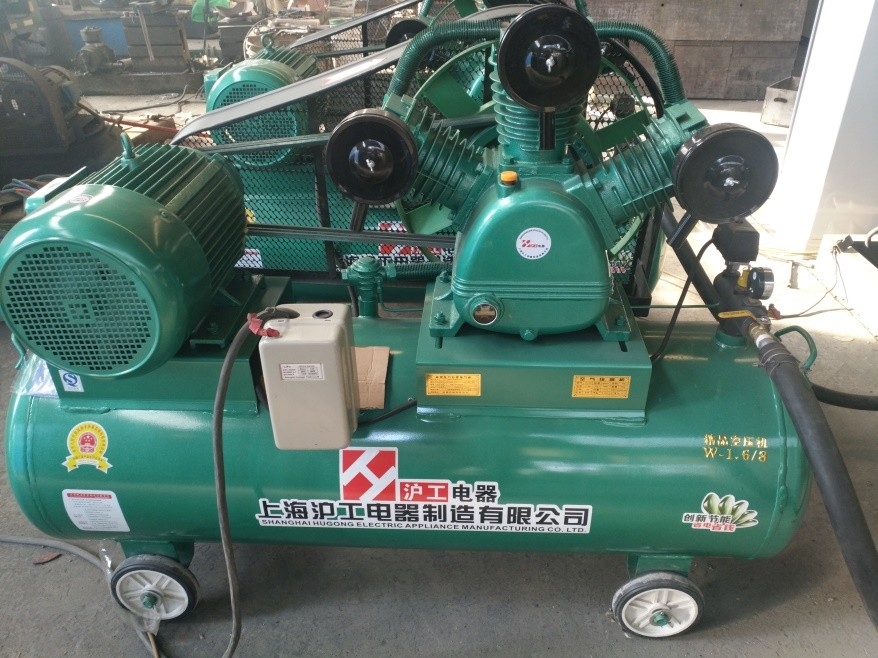

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
Machine Technical data (700pcs/h)
| Product Name | Model | Qty(set) | Capacity |
| Egg Tray Machine | ZJM-1A | 1 | 700pcs/h |
| Area of workshop | Without dryer | More than 100㎡ | |
| With dryer | More than 240㎡ | ||
| Capacity of power | Without dryer | 30KW | |
| With dryer | 45kw | ||
| Machine size | Without dryer | 7m*2m*2.2m | |
| With dryer | 26m*2m*2.2m | ||
| Size of container | Without dryer | 20ft*1 | |
| With dryer | 40ft*2+20ft*1 |
||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 30 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
