Paper Pulp Molding Machine For Wine Bottle And Coffee Cup Paper Tray Making

Paper Pulp Molding Machine For Wine Bottle And Coffee Cup Paper Tray Making

paper egg tray making machine

egg tray machine

5000pcs/h Paper Pulp Molding Machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

RUNLIANG

Certification:

CE

Model Number:

RL- ZJM

Contact Us
Request A Quote
Product Details
Power:
20KW-150KW
Raw Material:
Waste Paper, Waste Cardboard, Carton, Books Etc.
Guarantee:
2years
Capapcity:
1500pcs/h-5000pcs/h
Processing Type:
Pulp Molding Machine
Condition:
New
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
30 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



Wine Bottle And Coffee Cup Paper Tray / Egg Carton Making Machine / Paper Pulp Molding Machine



Wine Bottle And Coffee Cup Paper Tray / Egg Carton Making Machine / Paper Pulp Molding Machine



Machine Introduction:



This is our main machine offered to customers. It uses all kinds of waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It is a Reciprocating Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.



Machine Features:

1. controlled by computer, no needs any construction.

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2years warranty.

​ 5. The installation of the whole line is easy.



Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!

Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h -2500pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-300㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Machine list (350pcs/h egg tray capacity for example)



Egg Tray Machine NAME QUANTITY MOTOR POWER

Pulping system



Pulping machine 1set 7.5kw
Pulp Pump 1set 4kw
Pulp pump 1set 1.5kw
Mill pulp pump 1set 7.5kw
Water pump 2sets 0.75kw*2=1.5kw
Mixer / Crusher 1set 1.5kw
Pulp pool and Water pool 1set

Forming system































Moulding machine 1set
Vaccum pump 1set 4kw
Washer 1set 1.1kw
Pulp pump 1set 1.5kw
Shelf 1set
Compressor 1set 7.5 kw
Vaccum tank 1set
Air tank 1set
Dryer system Boiler 1set
Burner 1 set



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 45 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Some world famous brands of the fittings:

1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

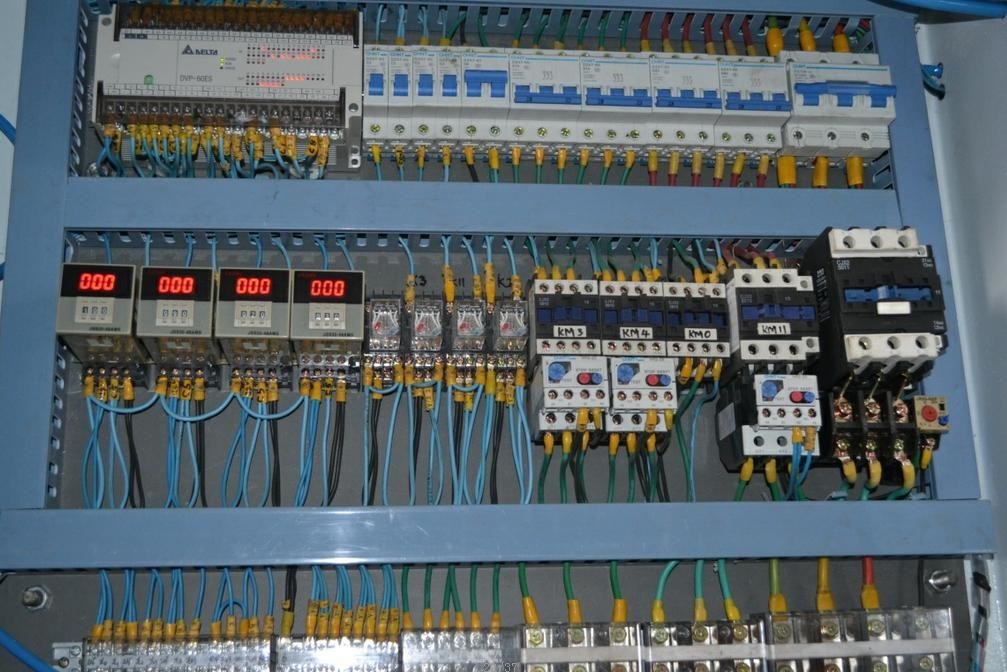

6. the computer controller(PLC)--DELTA

7. the burner-- BALTUR/RIELL



Factory Introduction


Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Don’t miss the chance of promoting the production efficiency of your company.



Welcome to contact us.
