Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
RL- ZJM

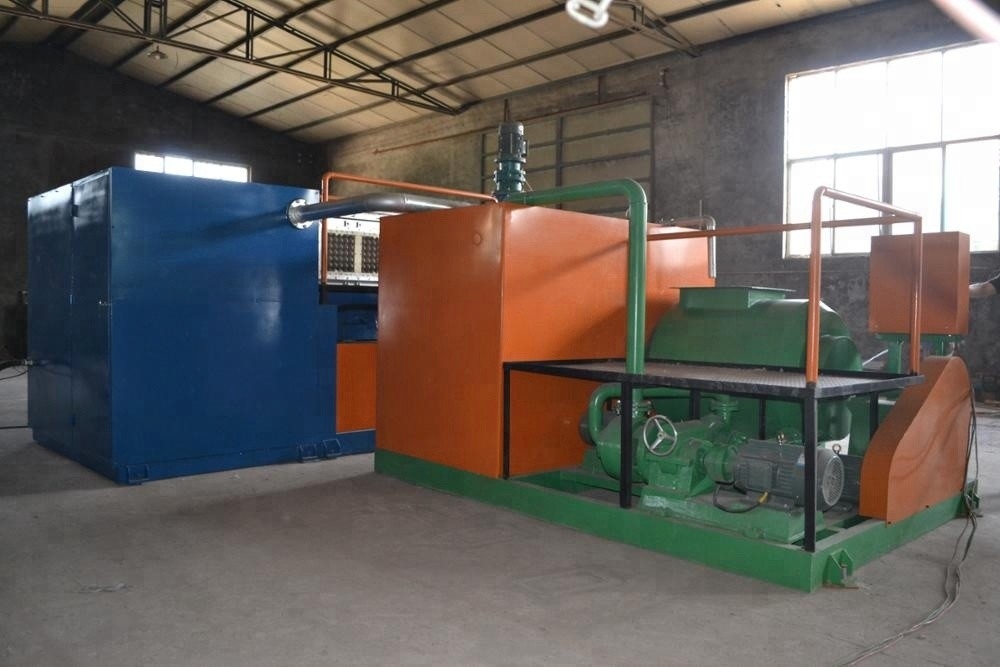

New Condition Disposable Paper Egg Tray / Carton Making Machine / Pulp Molding Machine From Waste Paper
New Condition Disposable Paper Egg Tray / Carton Making Machine / Pulp Molding Machine From Waste Paper
Machine Introduction:
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2. Forming System :
The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
3. Drying system (can use gas,dissel,coal for Boiler burner)
There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.
4. Automatic counting:
After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .
Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our machine can turn your waste paper and books into Money!
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 30 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
| Installation | |||||
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) | |||||
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELL
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
