Big Capacity Recycled Pulp Egg Tray Production Line Rotray Type Energy Saving

Big Capacity Competitive Advatages Paper Pulp Molding Machine Rotary Type Egg Tray Production Line​

Big  Capacity Competitive Pros Paper Pulp Molding Machine Rotary Type Egg Tray Production Line is a rotary type pulp molding egg tray making machine production line.

It is composed of :

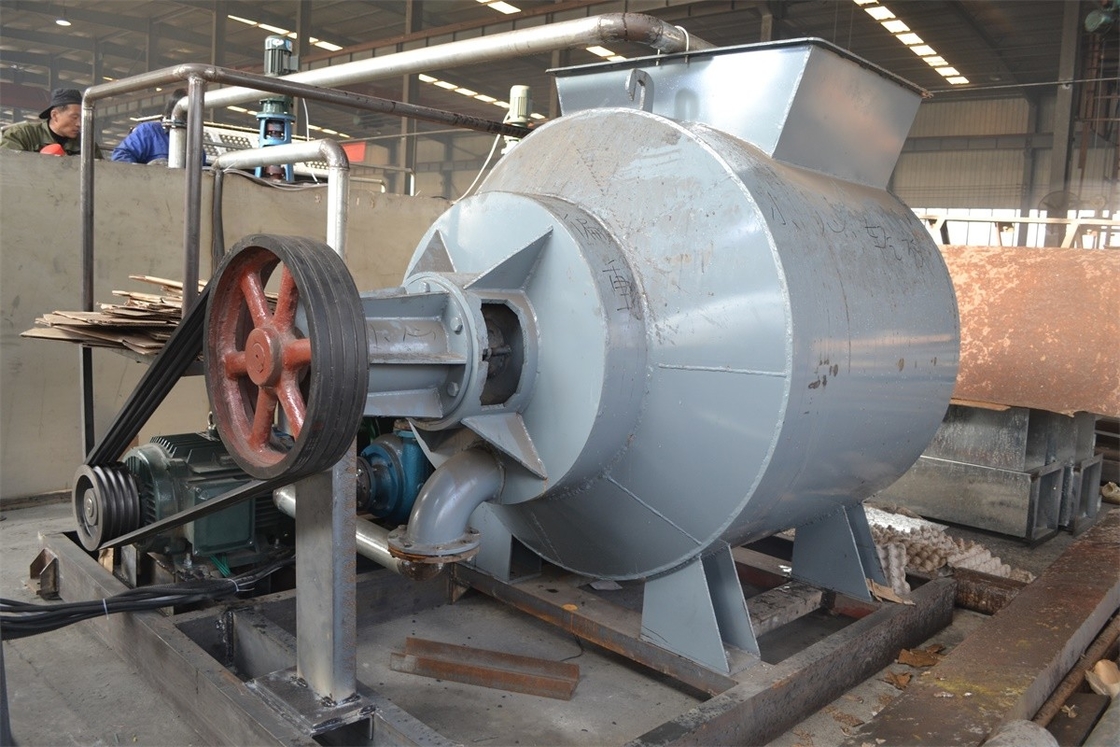

1. Pulping system: Use waste paper and water as raw material and pulp up;

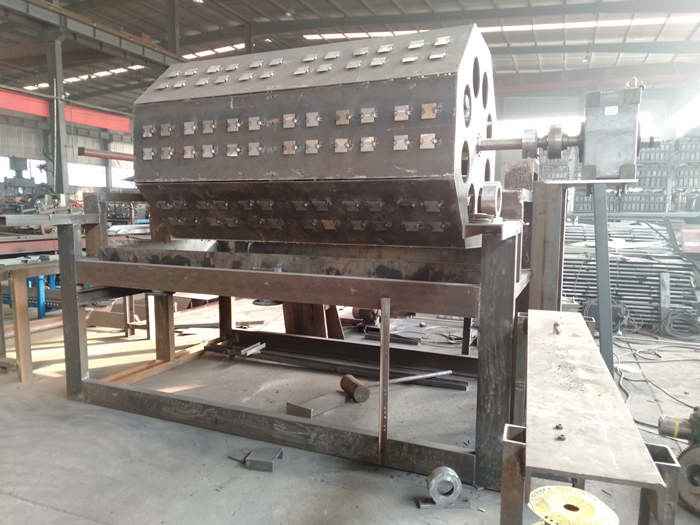

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

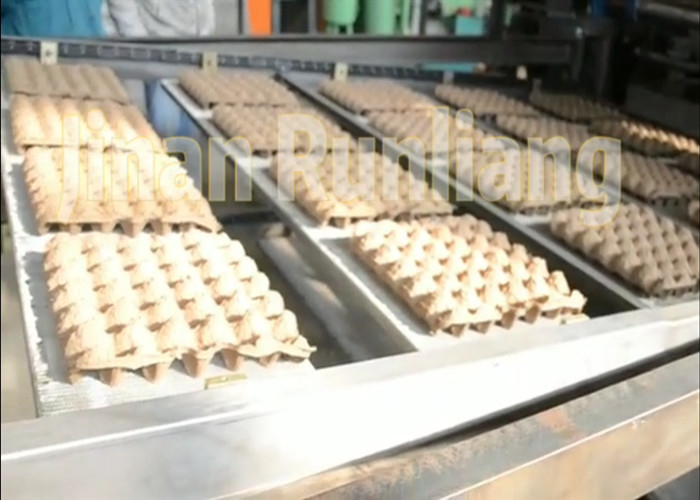

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate

The drying system is with one boiler.

The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.

For the moment, many enterprises have began to use paper egg carton to meet the environmental friendly goal. So egg tray machine complies with the trend of times. The egg tray making machine uses the raw material of waste paper and water to produce paper egg trays.

The egg tray manufacturing process is raw materials pulping – ingredients (as per customer needs)– mold forming – drying –packing. The additive is Food-Grade pigment which you can use to produce all colors of egg cartons. Another kind of additive is glue which has the anti-water function. When you use the additives, you should add the appropriate amount. The type machine can not only produce egg tray / carton but also produce apple tray, shoe trays, bottle trays, strawberry carton, etc.

Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 2300mm*1950mm*1600mm

Weight: 8 tons-50tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h-2500pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-560㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine

This production line is suitable for the following products:

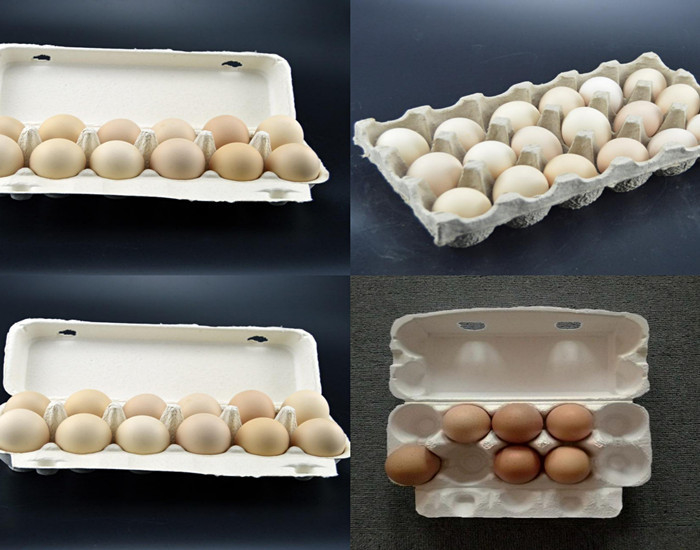

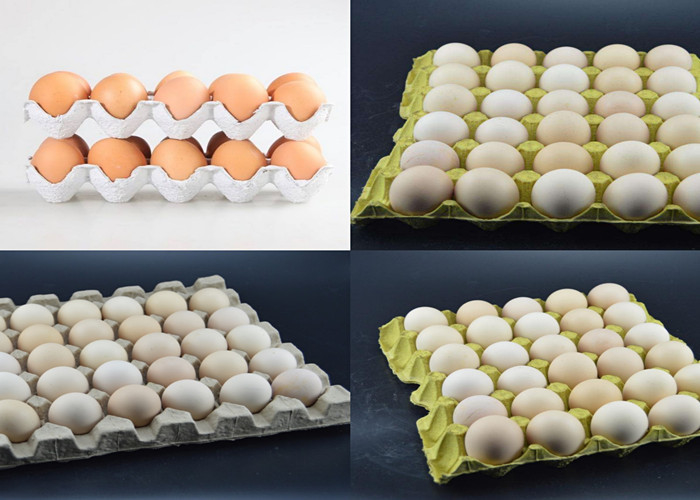

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.

Technical data (2000pcs/h for example)

Payment and delivery

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
