Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ series
Waste Paper Recycle Used Paper Egg Tray Machine / Automatic Paper Pulp Egg Tray Production Line
Waste Paper Recycle Used Paper Egg Tray Machine / Automatic Paper Pulp Egg Tray Production Line is a kind of paper pulp molding machine for egg tray production line.
It mainly has following working process: pulping system, forming system and drying system.
1. Pulping system: Use waste paper and water as raw material and pulp up;

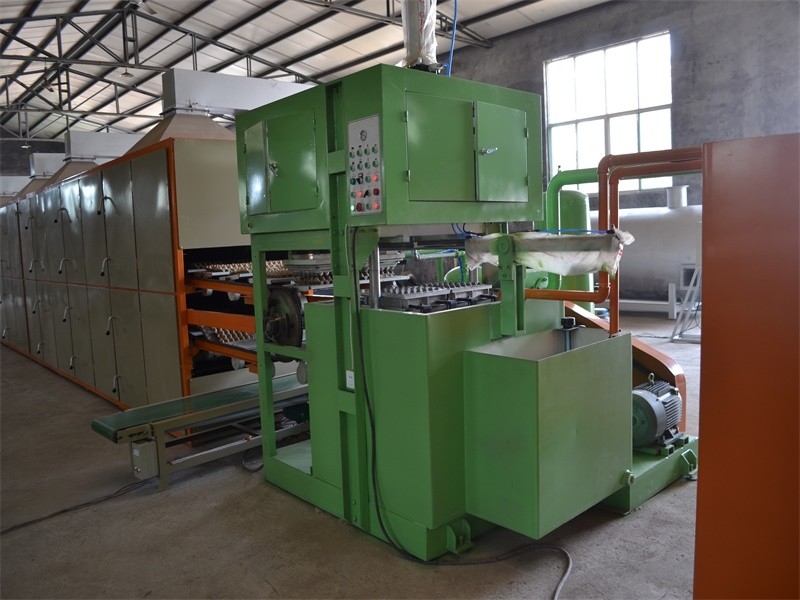

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

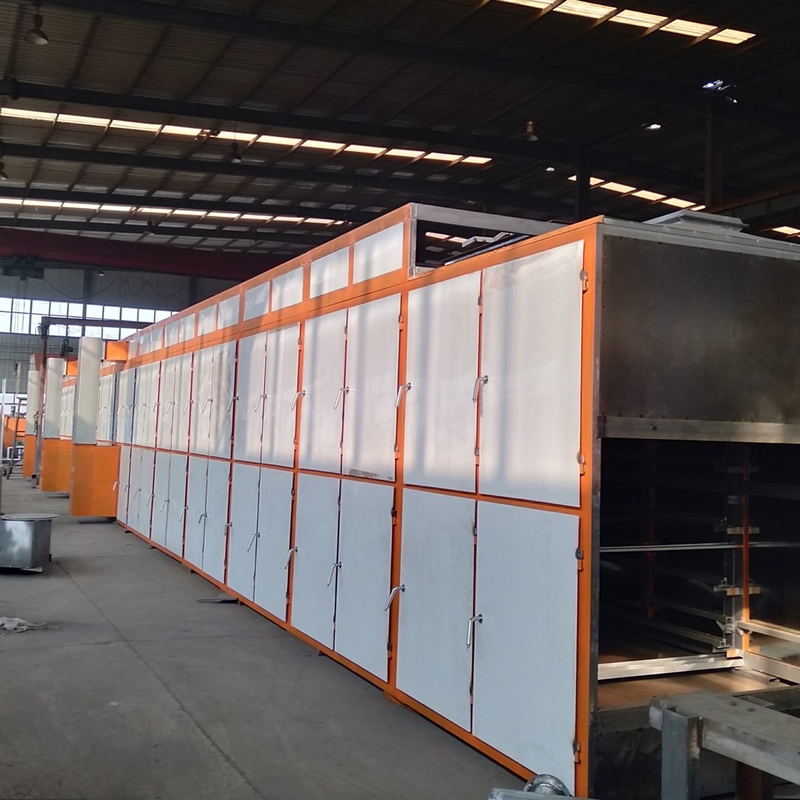

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate
The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
To meet the environmental friendly goal, many enterprises have began to use paper egg carton. So egg tray machine complies with the trend of times. The egg tray making machine uses the raw material of waste paper and water to produce paper egg trays.
The egg tray manufacturing process is raw materials pulping – ingredients (as per customer needs)– mold forming – drying –packing. The additive is Food-Grade pigment which you can use to produce all colors of egg cartons. Another kind of additive is glue which has the anti-water function. When you use the additives, you should add the appropriate amount. The type machine can not only produce egg tray / carton but also produce apple tray, shoe trays, bottle trays, strawberry carton, etc.
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: Wanyou
Voltage: 220-440V
Power(W): 28kw~50kw
Dimension(L*W*H): 2300mm*1950mm*1600mm
Weight: 4 tons-20tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -1300 pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 50-180㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Semi-auto and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:

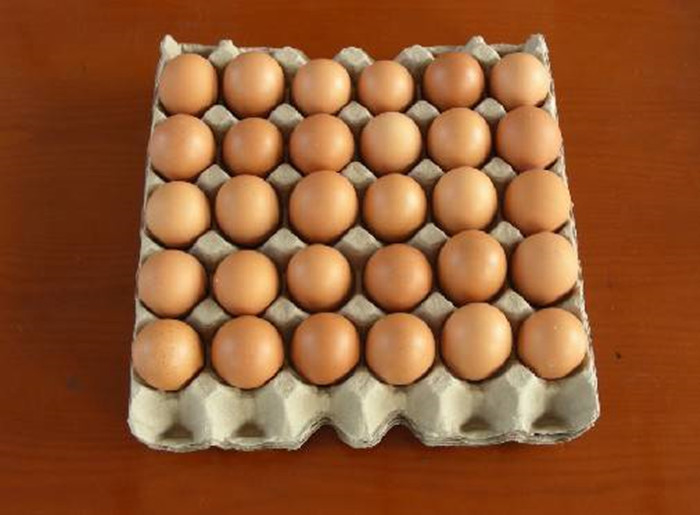

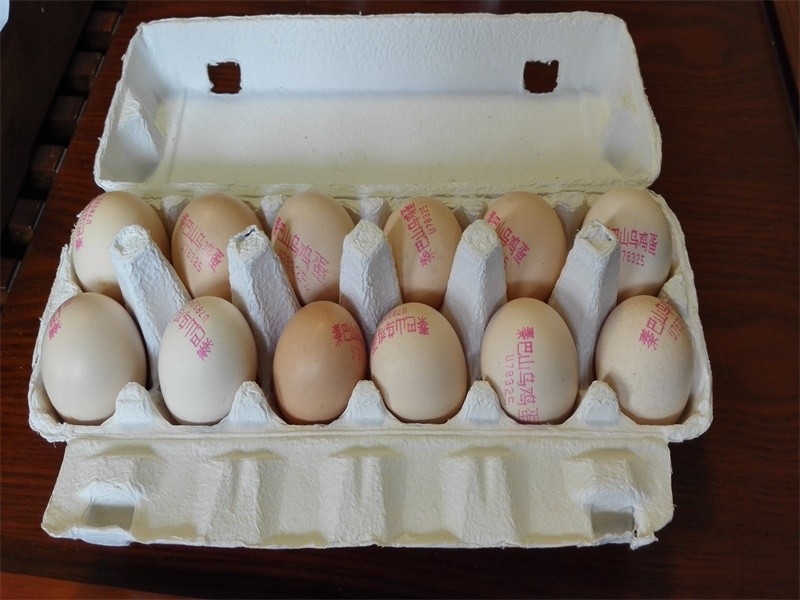

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

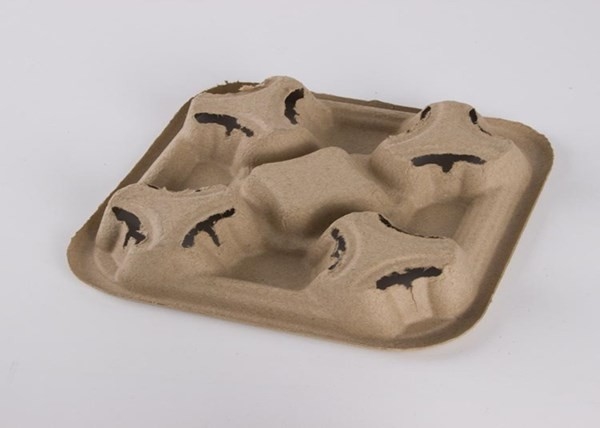

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data

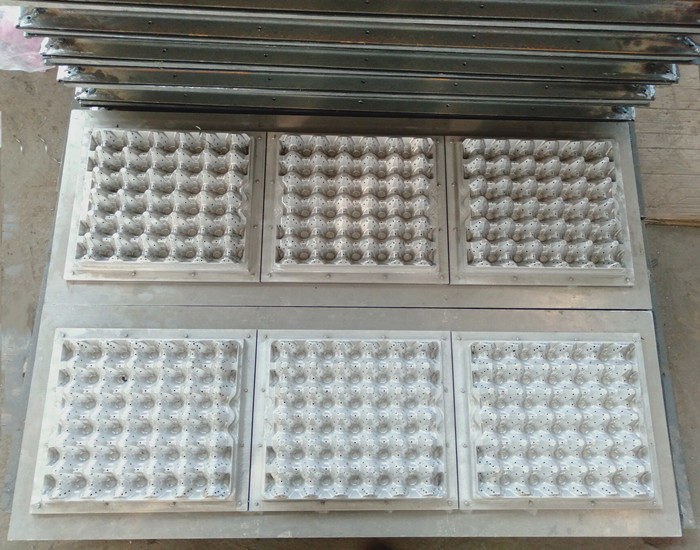

| Egg Tray mould quantity | 4pcs | Container Needed | |
| Raw material | Waste paper | Without dryer 40ft*1 With dryer 40ft *3 | |
| Output for egg tray | 1300pcs/hour | ||
| Net weight per piece (gram) | 70g-75g | ||
| The volume of waste paper consumed | 0.13ton / hour | ||
| The volume of water consumed | 0.2ton / hour | ||
| The natural gas consumption of the dryer(about) | 50cbm/h | ||
| Machine Weight | 20-25tons | ||
| Operate Workers | 4-5 | ||
| Egg tray Size | 295mm*295mm 30eggs | ||
| Area of workshop | Without dryer | More than 150㎡ | ||
| With dryer | More than 320㎡ | |||
| Capacity of power | Without dryer | 45KW | ||
| With dryer | 65kw | |||
| Machine size | Without dryer | 10m*2.5m*2.2m | ||
| With dryer | 35m*2.5m*2.2m | |||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 35 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE. | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
