Large Capacity Pulp Molding Equipment Egg Tray Egg Carton Production Line

Large Capacity Pulp Molding Equipment Egg Tray Egg Carton Production Line

small egg tray machine

paper pulp molding machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

RUNLIANG

Certification:

CE

Model Number:

RL- SMA

Contact Us
Request A Quote
Product Details
Voltage:
220V/380V/440V
Weight:
5 Tons - 45 Tons
Feature:
Automatic Type, Semi-automatic
Finished Products:
Egg Trays/Apple Trays, Shoe Trays Etc.
Drying Fuel:
Natural Gas, LPG, Coal Or Electricity
Raw Material:
Waste Newspaper, Cardboard Cartons, Any Waste Paper
Guarantee:
2years
Power:
Different Model Depends
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
in container
Delivery Time
30 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



Large Capacity Pulp Molding Equipment Egg Tray Egg Carton Production Line



Descriptions:

Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China
Approval: CE
Warranty: Life-long service, sustainable supply and upgrade machine and parts. 2 year warranty

Capacity: 350~6000pcs/hr (30-egg tray)

Mainly applied for egg tray, egg carton, fruit tray, cup carrier, bottle tray etc.

Raw material: Any kind of waste paper like waste carton, old newspaper, books, A4 paper etc, and easy to get

Automation: Fully-automatic control



Data of Egg Tray Egg Carton Production Line:

Product Name Pulp Molding Equipment Egg Tray Egg Carton Production Line
Model No. ZSJ-6000
Production capacity 6000pcs/hour
Forming Machine Rotary type
Dryer 6 layer dryer
Workshop Size 800m2
Material Waste recycle paper
Electricity Consumption 220kw
Water Consumption 1.5 tons per hour
Material consumption 450-500kg/hour
Worker 10-12 workers
Fuel Diesel/Natural gas/ LPG/ Steam/Electricity/Biomass fuel
Automation Fully Automatic



Our machine is:

controlled by computer, no needs any basic construction; and we could make all kinds of moulds for you, and it's very easy to change any moulds to the machine; our machine uses England technology, and​ spare parts is very famous brand from Germany, Taiwan... Our machine can give customers 2years warranty. The installation of the whole production line is easy.

Large Capacity Pulp Molding Equipment Egg Tray Egg Carton Production Line 0


Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 35 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE.
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Some world famous brands of the fittings:



1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

6. the computer controller(PLC)--DELTA

7. the burner-- BALTUR/RIELLO



How the Production Line Works:

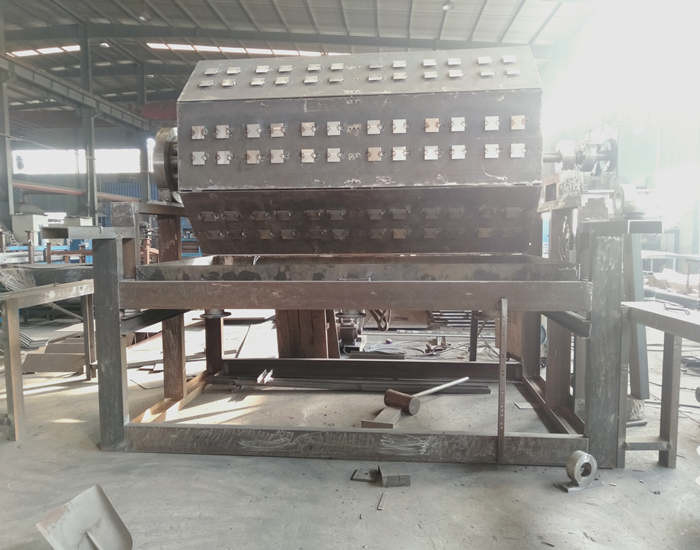

1. Pulping System: Turn waste paper, such waste carton, used newspaper, into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.



2. Forming Syatem: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.



3. Drying System: After forming, the tranfer moulds will move forward and put on the dryer automatically. you can choose Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal to heat up the wet products.



4. Stacking & Packing System: Cutting the extra edges of products, to get more compact and neat edge.

Large Capacity Pulp Molding Equipment Egg Tray Egg Carton Production Line 1



End products of egg tray production line:

Large Capacity Pulp Molding Equipment Egg Tray Egg Carton Production Line 2



FAQ :

Our productionline has Fully Automatic and Semi Automatic two types , both have computer control system .

1. What is Semi Automatic type ?

If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;

2. What is Fully Automat type ?

Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .

Of course, the price and the required work space would have big difference from the semi-automatic type.

3. Quality

--- Our machines use UK Technics and part of the components are Germany-made (ex: Ball valve) .

-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .

-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.

--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;

--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .



Our machine can provide customer 2 years warranty, which no other factory can supply.
