Auto Recycled Paper Egg Tray Manufacturing Machine 350-2500 Pcs/h Stable Running

Auto Recycled Paper Egg Tray Manufacturing Machine 350-2500 Pcs/h Stable Running

fruit tray making machine

paper pulp making machine

Place of Origin:

CHINA

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ-1300

Contact Us
Request A Quote
Product Details
Features:
Stable And Reliable Ruuning
Capacity:
350-2500 Pcs/h
Raw Material:
Recycled Paper
Certification:
CE & ISO
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
negotiation
Packaging Details
in container
Delivery Time
30 working days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
1SET PER MONTH
Product Description

350-2500 pcs/h auto egg tray making machine recycled paper egg tray production line



Product description:

 Reciprocating type egg tray machine. It is composed of 1 forming mold to 10 forming molds, which has 1 pressing mold and one transferring mold, moving up and down in the forming area of the Forming Machine.



The biggest capacity is the 10 molds egg tray machine, which can get maximum output 2500pcs per hour egg trays.

All production line has following 3 parts:



1. pulping system: including the hydraulic pulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the wastepaper into pulp.

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

3. drying system: including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used

directly.(customerized/Selectable)

Technical Parameters
Egg Tray mould quantity 3pcs Container Required
Raw material Waste paper

40ft*3



Output for egg tray 1000pcs/hour
Net weight per piece (gram) 70g-75g
The volume of waste paper consumed 0.075ton / hour
The volume of water consumed 0.22ton / hour

The natural gas consumption of the dryer(about)



45cbm/h




Machine Weight 8tons
Egg tray Size 295mm*295mm 30eggs
Remark: 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and engineer charge USD100/day )



The most outstanding feature:

1) stable and reliable ruuning

2) environmental protection

3) highest efficiency of end products trays

4) esay operation, installation by customer

5) producing high quality egg trays which can meet EU standards.

6) 2 years warranty

7) famous brand and Germany brand spare parts used for forming machine and machine motors.



If custmoer is from Africa country and is in shock of much budget for the project, he is strongly advised to buy this semi-auto type egg tray machines, which is not including the dryer system.

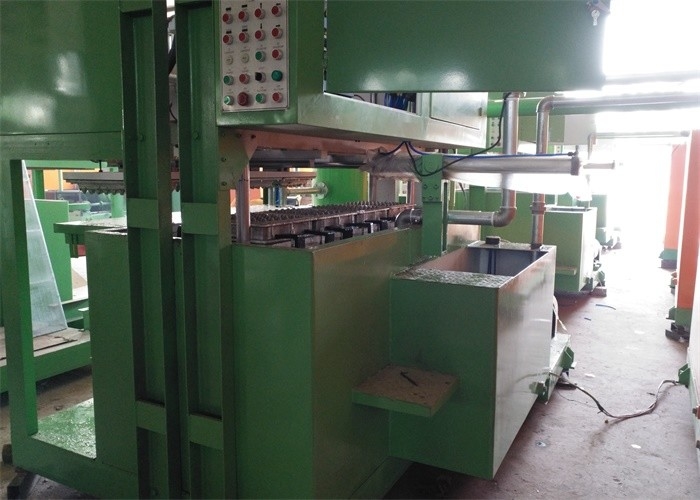

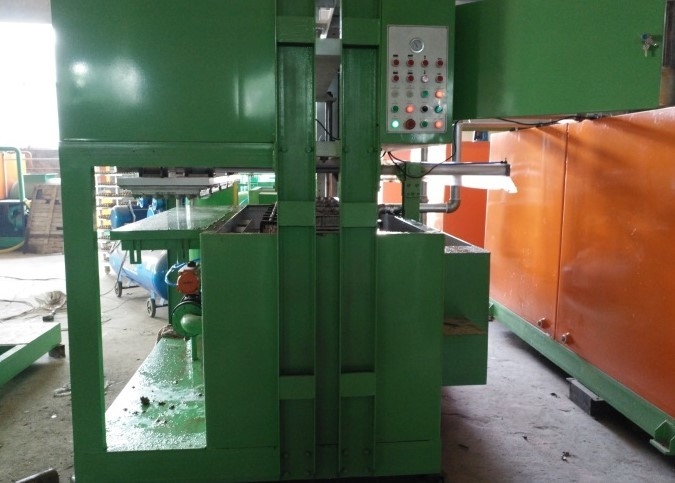

Auto Recycled Paper Egg Tray Manufacturing Machine 350-2500 Pcs/h Stable Running 0

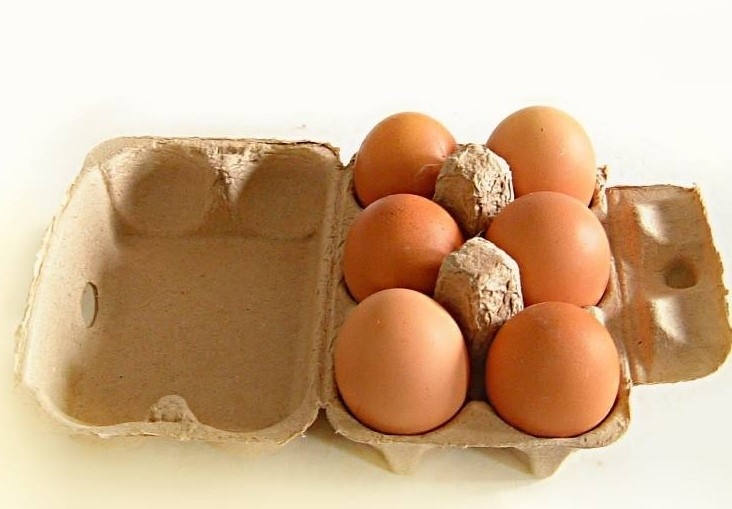

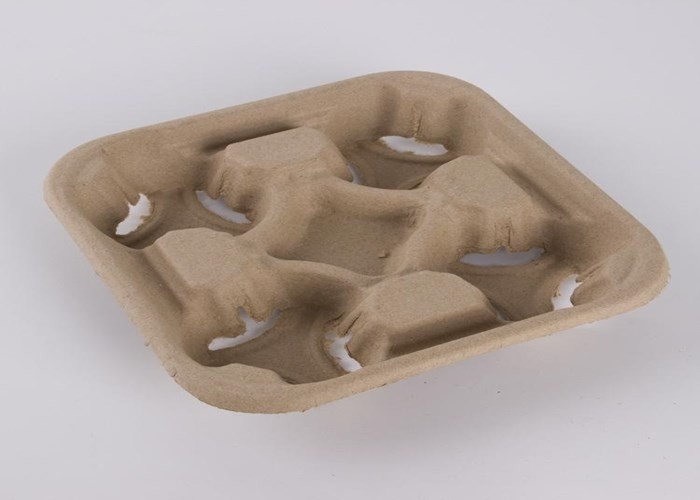

Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, paper shoe trays and industrial packages trays,etc.

With lower cost investment, you can achieve big profit by our machine.

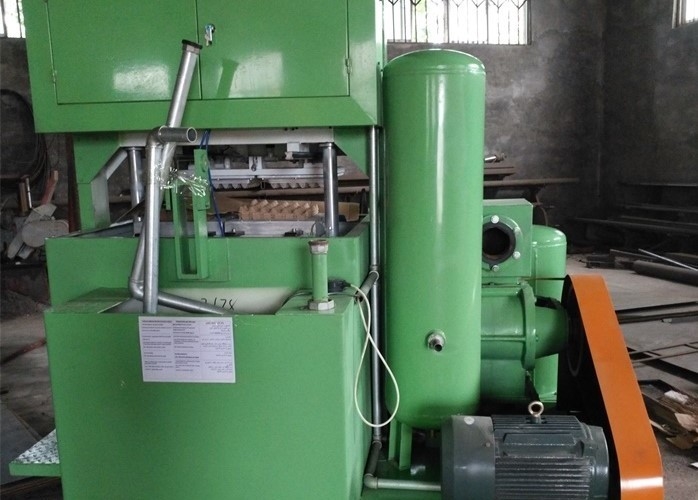

Auto Recycled Paper Egg Tray Manufacturing Machine 350-2500 Pcs/h Stable Running 1
